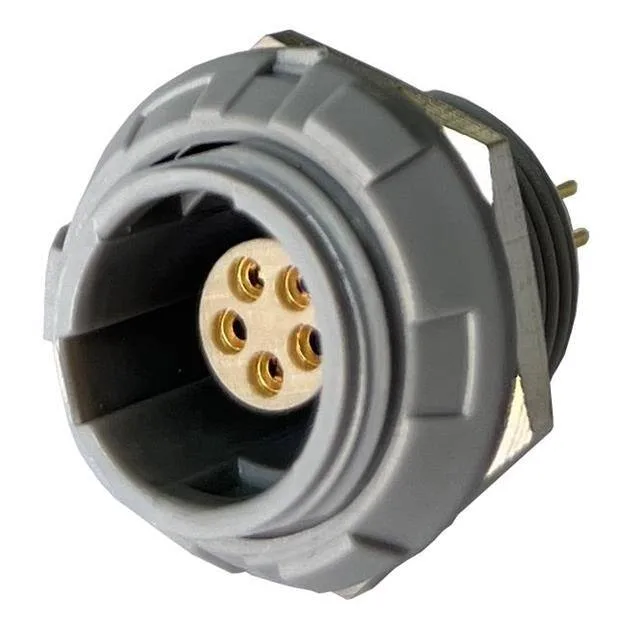

Adam Tech MMI-P1SRG05PGG
MPNMMI-P1SRG05PGG
Active
CONN RCPT FMALE 5POS GOLD SLDR
$7.51Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMMI
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MMI |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Voltage rating | 250V |
| Current rating | 9A |
| IP rating | IP50 - Dust Protected |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -55°C ~ 118°C |
| Color | Gray |
| Shell material | Polycarbonate (PC) |
| Insert material | Polyphenylene Sulfide (PPS) |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass |
| Primary material | Plastic |
| Package | Bag |
| Shielding | Unshielded |
| Orientation | G |
| Termination | Solder |
| Positions | 5 |
| Contact finish - mating | Gold |
