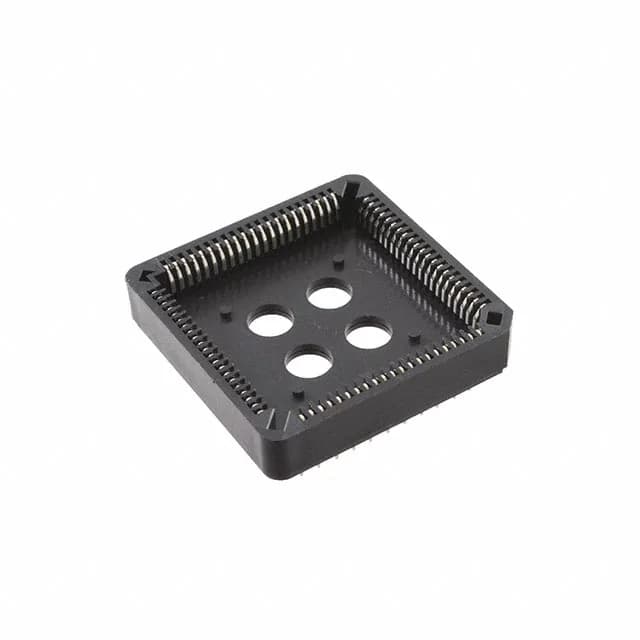

Adam Tech PLCC series socket, order code PLCC-84-AT, 84 positions (4 x 21 grid), 0.050" (1.27mm) mating pitch, 0.100" (2.54mm) post pitch, through hole, solder termination, tin-plated mating and post contacts, closed frame.
| Parameter | Value |
|---|---|
| Type | PLCC |
| Series | PLCC |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.050\" (1.27mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.126\" (3.20mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
| Number of positions or pins | 84 (4 x 21) |
The PLCC-84-AT is the 84-circuit member of Adam Tech's PLCC series of IC & Device Sockets, arranged in a 4 x 21 grid on a 0.050" (1.27mm) mating pitch.
The closed-frame design surrounds the PLCC device on all four sides, providing mechanical registration during insertion and extraction.
The PLCC-84-AT is ROHS3 compliant. No UL, IEC, or REACH documentation is listed in the available records.
