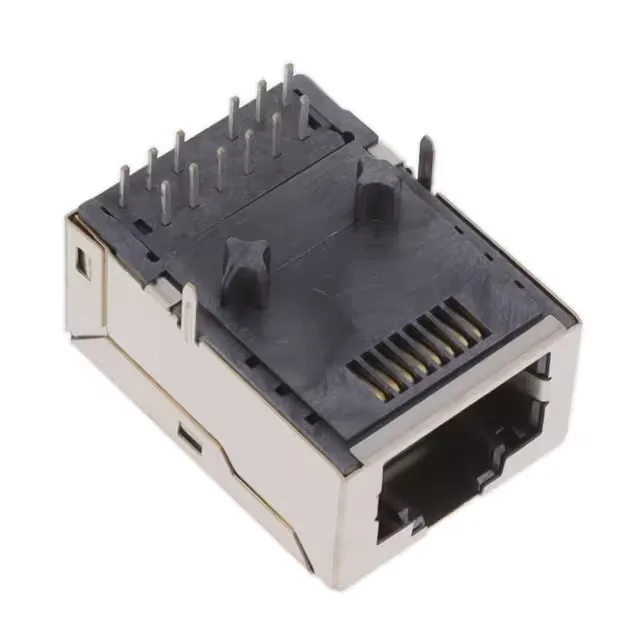

Adam Tech MTJ-88SUX1-FS-M245C-HT-WOT
MPNMTJ-88SUX1-FS-M245C-HT-WOT
Active
MODULAR JACK, SHIELDED, LED'S, H
$9.76Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MTJ |
| Mounting | Through Hole |
| Connector type | Jack |
| Operating temperature | -40°C ~ 85°C |
| LED color | Does Not Contain LED |
| Shield material | Brass, Nickel Coated |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Height above board | 0.445\" (11.30mm) |
| Package | Tray |
| Features | Board Lock, Solder Retention |
| Shielding | Shielded |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | Flash |
| Number of cores per jack | 8 |
