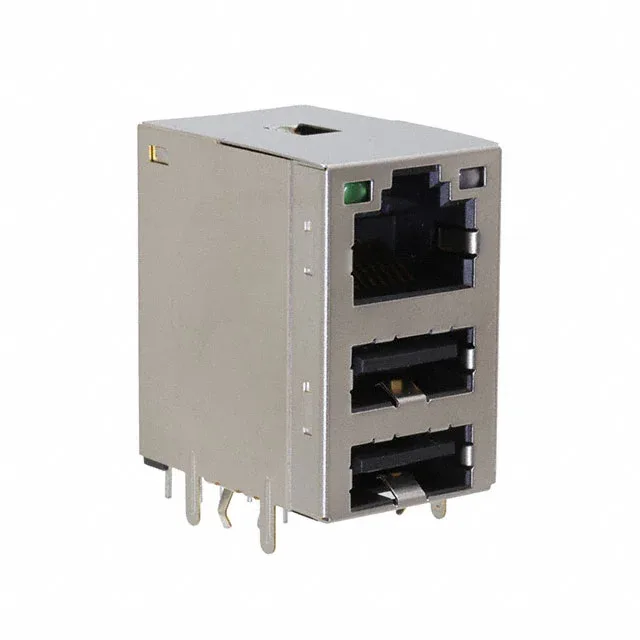

Adam Tech MTJ-DUSB-88JX1-FS-RL35-M86C
MPNMTJ-DUSB-88JX1-FS-RL35-M86C
Active
MODULAR JACK / USB COMBO CONNECT
$4.42Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MTJ |
| Mounting | Through Hole |
| Connector type | RJ45 with USB A, Dual |
| Operating temperature | 0°C ~ 70°C |
| LED color | Green - Green, Yellow |
| Shield material | Stainless Steel |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Height above board | 1.215\" (30.87mm) |
| Package | Tray |
| Features | Board Lock, Solder Retention |
| Shielding | Shielded |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | Flash |
| Number of cores per jack | 8 |
