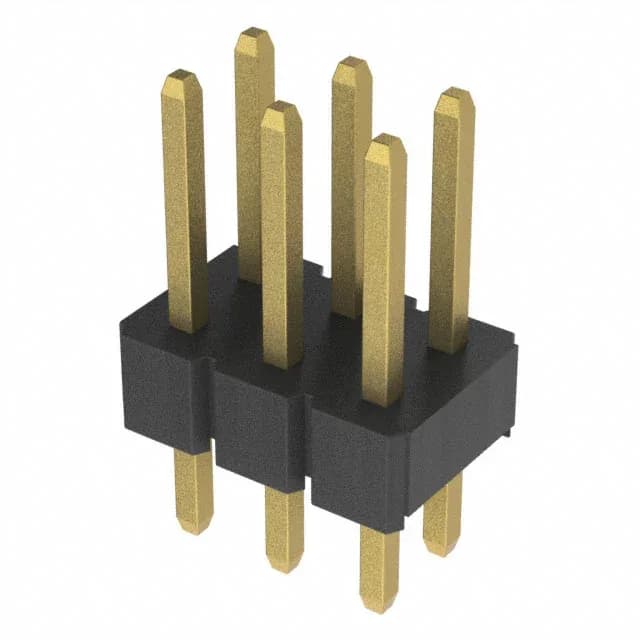

Adam Tech PH2-06-UA
MPNPH2-06-UA
Active
CONN HEADER VERT 6POS 2.54MM
$0.1300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPH2
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PH2 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -55°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.098\" (2.50mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.453\" (11.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.235\" (5.97mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
