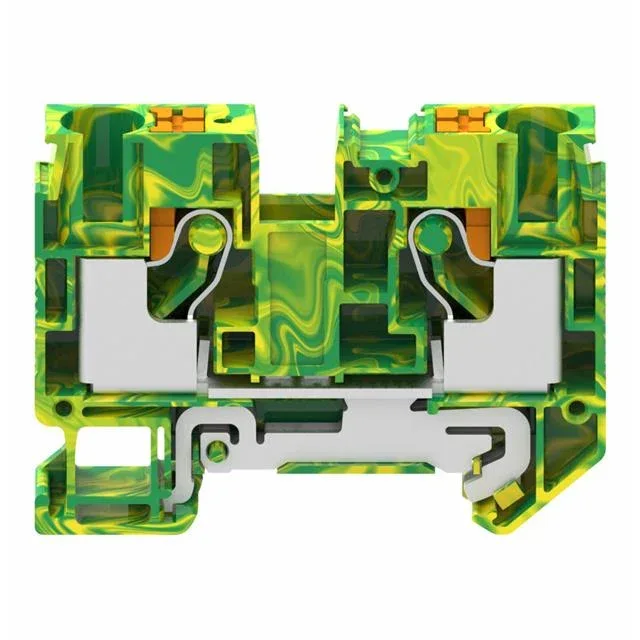

Adam Tech REB-B2E-YG
MPNREB-B2E-YG
Active
TERM BLK GND 6-20 AWG
$6.32Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesREB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | REB |
| Voltage - UL | 600V |
| Current - UL | 60 A |
| Terminal - width | 10.2mm |
| Wire gauge or range - AWG | 6-20 AWG |
| Wire gauge or range - mm2 | 0.5-10mm² |
| Color | Green, Yellow |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 18mm |
| Termination style | Push In, Spring |
| Positions | 2 |
