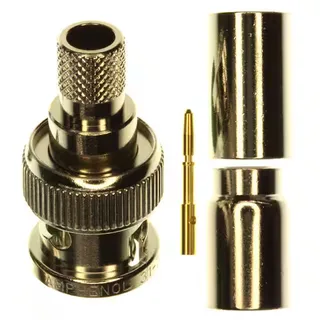

031-71042
Amphenol
-55°C~85°C75OhmTray
Ref. price$8.4300
Lead time on requestGet quote ›
Amphenol 0317 Series
10 variants · Amphenol
About the Amphenol 0317 Series
The Amphenol 0317 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body finish of Nickel, center contact plating of Gold and fastening type of Bayonet Lock. Variants differ by body material, cable group and center contact material, so you can match the exact body material your application requires using the selection guide below. All listed Amphenol 0317 Series part numbers are active and orderable.
Select a variant by
- Body material
- Brass · Zinc Die Cast
- Cable group
- - · AT&T 734, 734A, Belden 1505A · RG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290 · RG-6, Belden 1694, 1694A, 9248 · RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
- Center contact material
- Brass · Phosphor Bronze
- Connector type
- Jack, Female Socket · Plug, Male Pin
- Contact termination
- Crimp · Crimp or Solder · Solder
- Dielectric material
- Polyoxymethylene (POM) Acetal · Polypropylene (PP) · Polytetrafluoroethylene (PTFE)
- Features
- - · Board Guide
- Housing color
- Silver · Silver, White
Shared specifications
- Body finish
- Nickel
- Center contact plating
- Gold
- Fastening type
- Bayonet Lock
- Ingress protection
- -
- Mating cycles
- 500
- Number of ports
- 1
Variant comparison
| Parameter | 031-71042 | 031-70000 | 031-70016 | 031-70221 | 031-70259 | 031-71000-RFX |
|---|---|---|---|---|---|---|
| Body material | Zinc Die Cast | Brass | Brass | Brass | Brass | Brass |
| Cable group | - | RG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290 | RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179 | - | AT&T 734, 734A, Belden 1505A | RG-6, Belden 1694, 1694A, 9248 |
| Center contact material | Phosphor Bronze | Brass | Phosphor Bronze | Phosphor Bronze | Brass | Brass |
| Connector type | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin |
| Contact termination | Solder | Crimp | Crimp or Solder | Solder | Crimp | Crimp |
| Dielectric material | Polypropylene (PP) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polyoxymethylene (POM) Acetal |
| Features | Board Guide | - | - | - | - | - |
| Housing color | Silver | Silver | Silver | Silver | Silver | Silver |
Request a quote on any Amphenol 0317 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Amphenol 0317 Series variants differ?
- Amphenol 0317 Series part numbers differ by body material, cable group, center contact material and connector type. Use the selection guide above to pick by body material.
- How many Amphenol 0317 Series part numbers are listed?
- 10 Amphenol 0317 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Amphenol 0317 Series?
- Request a quote (RFQ) for any Amphenol 0317 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
