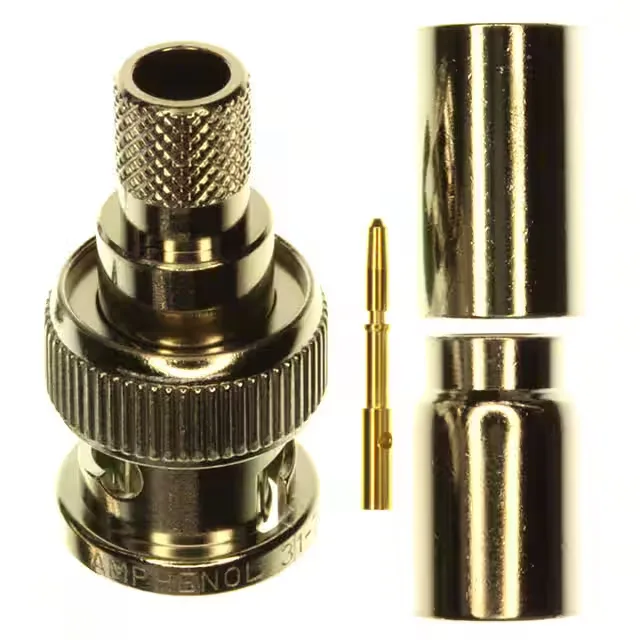

031-70000 — Amphenol product photo
Amphenol

Amphenol RF 031-70000 BNC Plug, 75 Ohm, 4 GHz

MPN031-70000
Active

Amphenol RF BNC plug, male pin, 75 Ohm, 4 GHz, crimp termination, 500 mating cycles, 0.2 dB insertion loss, 500 V, -65°C~165°C, bulk pack includes connector, contact, ferrule.

$11.1100Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70000 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 031-70000: The 75 Ohm impedance targets video distribution, broadcast, and broadband data applications where 50 Ohm BNCs would introduce a mismatch.

Cable Fit and Termination — What It Accepts

The cable group listed covers RG-6 and RG-6A (common for CATV/SAT), RG-54, RG-143, RG-212, and several Belden equivalents. If you're terminating RG-59, this plug is not the match — the dielectric diameter and braid lay differ; look at the 034-1026 for that cable group. That wide range suits outdoor enclosures and unheated cabinets where standard PVC-dielectric connectors soften or crack.

The 031-70016 is the bulkhead-mount jack counterpart — female socket, front-side nut mounting, same 75 Ohm impedance and 4 GHz bandwidth. Where this plug terminates a cable end, the 031-70016 mounts through a panel and accepts the plug. Both share the 500-cycle bayonet lock and 0.2 dB insertion loss. Choose the plug for the free-hanging cable end; choose the jack for a fixed panel point.

Frequently asked questions

Which cable types are compatible with 031-70000?

RG-6, RG-6A, RG-54, RG-143, RG-212, plus Belden 1152A, 89248, and 9290. RG-59 is not in the listed group; for RG-59 use the Amphenol 034-1026.
