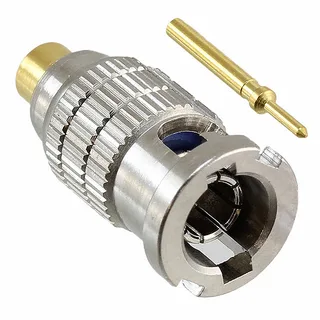

034-5012
Amphenol
50Ohm-65°C~165°CBulk
Ref. price$10.8900
Lead time on requestGet quote ›
Amphenol 03450 Series
13 variants · Amphenol
About the Amphenol 03450 Series
The Amphenol 03450 Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body material of Brass, center contact plating of Gold and dielectric material of Polytetrafluoroethylene (PTFE). Variants differ by body finish, cable group and center contact material, so you can match the exact body finish your application requires using the selection guide below. All listed Amphenol 03450 Series part numbers are active and orderable.
Select a variant by
- Body finish
- Gold · Nickel
- Cable group
- - · 0.047\" Semi Rigid · RG-55, 142, 223, 400 · RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 · RG-174, 188, 188A, 316, M17/119-RG174 · RG-178 · RG-178, 178A, 178B, 196, 196A, M17/93-RG178 · RG-402 (0.086\" Conformable) · RG-405 (.085\", .086\" Semi Rigid)
- Center contact material
- Beryllium Copper · Phosphor Bronze
- Connector type
- Jack, Female Socket · Plug, Male Pin
- Contact termination
- Crimp · Solder
- Housing color
- Gold · Silver
- Impedance
- 50 Ohms · 50Ohm
- Includes
- - · 3 pcs - 1 Connector, 1 Contact, 1 Ferrule · 3 pcs - 1 Connector, 1 Contact, 1 Insulator · 3 pcs - 1 Connector, 1 Contact, 1 Nut · 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut · 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Nut
Shared specifications
- Body material
- Brass
- Center contact plating
- Gold
- Dielectric material
- Polytetrafluoroethylene (PTFE)
- Fastening type
- Bayonet Lock
- Features
- -
- Frequency - max
- 6 GHz
- Insertion loss
- -
- Mating cycles
- 500
- Number of ports
- 1
Variant comparison
| Parameter | 034-5012 | 034-5011 | 034-5013 | 034-5020 | 034-5026 | 034-5027 |
|---|---|---|---|---|---|---|
| Body finish | Nickel | Nickel | Gold | Nickel | Gold | Gold |
| Cable group | RG-178, 178A, 178B, 196, 196A, M17/93-RG178 | RG-178, 178A, 178B, 196, 196A, M17/93-RG178 | - | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 | RG-405 (.085\", .086\" Semi Rigid) | 0.047\" Semi Rigid |
| Center contact material | Phosphor Bronze | Phosphor Bronze | Beryllium Copper | Beryllium Copper | Phosphor Bronze | Phosphor Bronze |
| Connector type | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin |
| Contact termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Housing color | Silver | Silver | Gold | Silver | Gold | Gold |
| Impedance | 50Ohm | 50 Ohms | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Includes | - | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | 3 pcs - 1 Connector, 1 Contact, 1 Insulator | 3 pcs - 1 Connector, 1 Contact, 1 Insulator |
Request a quote on any Amphenol 03450 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Amphenol 03450 Series variants differ?
- Amphenol 03450 Series part numbers differ by body finish, cable group, center contact material and connector type. Use the selection guide above to pick by body finish.
- How many Amphenol 03450 Series part numbers are listed?
- 13 Amphenol 03450 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Amphenol 03450 Series?
- Request a quote (RFQ) for any Amphenol 03450 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
