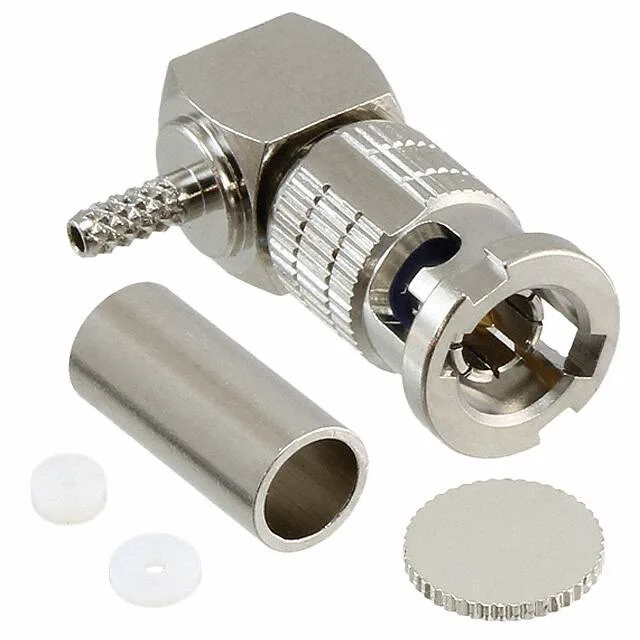

Amphenol 034-5012 BNC HD Right Angle Plug, 50 Ohm, 6 GHz

MPN034-5012
Active

Amphenol BNC HD, 034-5012, Plug Male Pin, Right Angle, 50 Ohm, 6 GHz, Crimp Shield, Solder Contact, RG-178/196, 500 Cycles, Bulk.

$10.8900Ref. price · indicative, final on quote
034-5012 datasheet
StockIn Stock (20)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

034-5012 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Frequency - max6 GHz
Cable groupRG-178, 178A, 178B, 196, 196A, M17/93-RG178
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

50 Ohm BNC HD Right-Angle Plug for RG-178/196 Coax

The 034-5012: It is rated to 6 GHz with 500 mating cycles, built for repeated connect/disconnect in lab, broadcast, and telecom environments where signal integrity matters. The bayonet lock fastens quickly and the nickel-plated brass body resists corrosion in field use. This plug terminates RG-178, RG-178A, RG-178B, RG-196, RG-196A, and M17/93-RG178 coax cables — the cable group is the first thing to match against your build.

Cable and Termination Checklist

The centre pin is gold-plated phosphor bronze, the body is brass with nickel finish. Termination is a two-step process — solder the centre conductor, then crimp the shield braid. The right-angle exit keeps the cable parallel to the mounting surface, saving space behind a panel or inside an enclosure. For a complete assembly, pair this plug with the matching BNC HD jack and the appropriate RG-178 or RG-196 cable from your stock.

Frequently asked questions

Where can I buy the Amphenol 034-5012 and how do I get a price?

The 034-5012 is available to order through our distribution channel. Submit an RFQ with your target quantity and we will confirm current pricing and lead time — no minimum buy required.

What is the impedance of 034-5012?

The 034-5012 is a 50 Ohm connector, matching standard 50 Ohm coax cable and test equipment interfaces.

Which cables are compatible with 034-5012?

This plug terminates RG-178, RG-178A, RG-178B, RG-196, RG-196A, and M17/93-RG178 cables — all 50 Ohm, small-diameter coax types.
