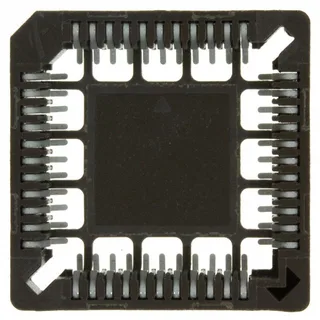

69802-032LF
Amphenol
Closed Frame-55°C~125°CTube
Ref. price$1.5700
Lead time on requestGet quote ›
Amphenol 69802 Series
6 variants · Amphenol
About the Amphenol 69802 Series
The Amphenol 69802 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish thickness - mating of 150.0µin (3.81µm), contact finish thickness - post of 150.0µin (3.81µm) and contact material - mating of Phosphor Bronze. Variants differ by contact finish - mating, contact finish - post and contact resistance, so you can match the exact contact finish - mating your application requires using the selection guide below. All listed Amphenol 69802 Series part numbers are active and orderable.
Select a variant by
- Contact finish - mating
- Tin · Tin-Lead
- Contact finish - post
- Tin · Tin-Lead
- Contact resistance
- - · 20mOhm
- Features
- Closed Frame · Open Frame
- Housing material
- Polyphenylene Sulfide (PPS) · Polyphenylene Sulfide (PPS), Glass Filled
- Number of positions or pins
- 32 (2 x 7, 2 x 9) · 44 (4 x 11)
- Operating temperature
- - · -55°C ~ 125°C · -55°C~125°C
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
Shared specifications
- Contact finish thickness - mating
- 150.0µin (3.81µm)
- Contact finish thickness - post
- 150.0µin (3.81µm)
- Contact material - mating
- Phosphor Bronze
- Contact material - post
- Phosphor Bronze
- Material flammability rating
- UL94 V-0
- Mounting type
- Surface Mount
- Pitch
- 0.050\" (1.27mm)
- Pitch - post
- 0.050\" (1.27mm)
- Termination
- Solder
- Type
- PLCC
Variant comparison
| Parameter | 69802-032LF | 69802-044LF | 69802-132LF | 69802-144LF | 69802-432LF | 69802-444LF |
|---|---|---|---|---|---|---|
| Contact finish - mating | Tin | Tin | Tin | Tin | Tin | Tin-Lead |
| Contact finish - post | Tin | Tin | Tin | Tin | Tin | Tin-Lead |
| Contact resistance | 20mOhm | 20mOhm | 20mOhm | 20mOhm | 20mOhm | - |
| Features | Closed Frame | Closed Frame | Closed Frame | Closed Frame | Closed Frame | Open Frame |
| Housing material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS), Glass Filled |
| Number of positions or pins | 32 (2 x 7, 2 x 9) | 44 (4 x 11) | 32 (2 x 7, 2 x 9) | 44 (4 x 11) | 32 (2 x 7, 2 x 9) | 44 (4 x 11) |
| Operating temperature | -55°C~125°C | -55°C ~ 125°C | -55°C~125°C | -55°C~125°C | -55°C~125°C | - |
| Package | Tube | Tube | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
