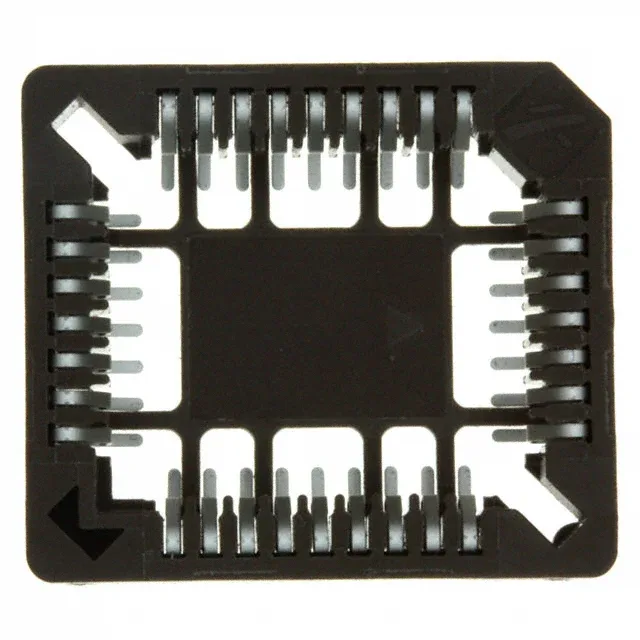

69802-032LF — Amphenol product photo
Amphenol

69802-032LF PLCC Socket, 32-Pin, 0.050" Pitch, Tin, SMT

MPN69802-032LF
Active

Amphenol ICC (FCI) 69802-032LF, PLCC socket, 32 positions (2 x 7, 2 x 9), 0.050" (1.27mm) pitch, tin-plated phosphor bronze contacts, surface mount, closed frame, UL94 V-0 PPS housing.

$1.5700Ref. price · indicative, final on quote
69802-032LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69802-032LF Technical Specifications
ParameterValue
TypePLCC
Mounting typeSurface Mount
Current rating1 A
Operating temperature-55°C~125°C
Housing materialPolyphenylene Sulfide (PPS)
Contact material - postPhosphor Bronze
Contact material - matingPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTube
FeaturesClosed Frame
TerminationSolder
Pitch - post0.050\" (1.27mm)
Pitch0.050\" (1.27mm)
Contact resistance20mOhm
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)
Number of positions or pins32 (2 x 7, 2 x 9)

Product details

PLCC Socket, 32 Positions, 0.050" Pitch

The 69802-032LF is a 32-position PLCC socket from Amphenol ICC (FCI), designed to accept a PLCC package with a 0.050" (1.27mm) lead pitch. The pin grid is arranged as 2 rows of 7 on two sides and 2 rows of 9 on the other two sides, matching the standard JEDEC footprint for 32-pin PLCC devices. The closed-frame design provides full support around the IC body, reducing the risk of bent leads during insertion and extraction.

Surface Mount Termination and Temperature Range

Termination is surface mount (SMT), with tin-plated phosphor bronze posts that solder directly to the PCB pads. The tube packaging is standard for PLCC sockets, protecting the contacts during handling and feeding into pick-and-place equipment if the tube is compatible with the feeder system.

RoHS compliance is confirmed, which simplifies compliance for assemblies destined for EU or similar regulated markets.
