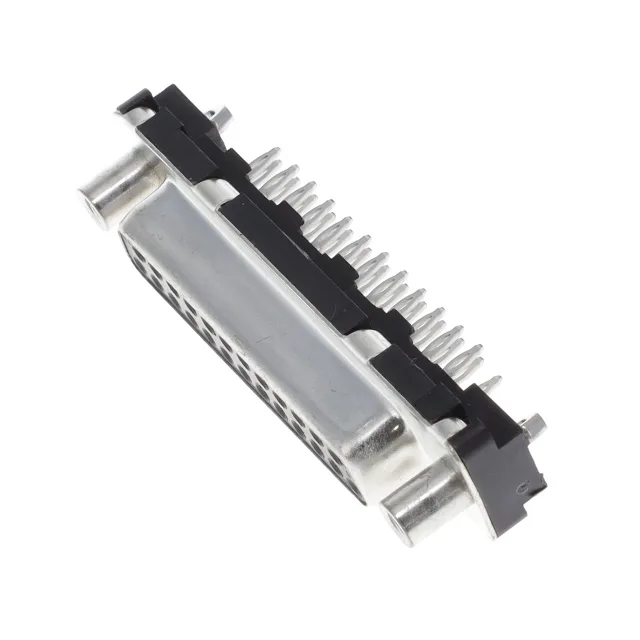

D25S91C4GV00LF — Amphenol product photo
Amphenol

Amphenol FCI D25S91C4GV00LF Delta D D-Sub Receptacle

MPND25S91C4GV00LF
Active

Amphenol FCI Delta D D-Sub Receptacle, 25 Positions, 2 Rows, Female Sockets, Press-Fit Termination, Through Hole Mount, Gold Flash Contacts, 5A per Contact, 300V, Board Lock, Black PBT Housing, UL94 V-0.

$2.6700Ref. price · indicative, final on quote
D25S91C4GV00LF datasheet
StockIn Stock (53)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

D25S91C4GV00LF Technical Specifications
ParameterValue
SeriesDelta D
GenderSignal
Mounting typeThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating300V
Current rating5A per Contact
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishSteel, Tin-Nickel Plated
Material flammability ratingUL94 V-0
FeaturesBoard Lock
PackageTray
TerminationPress-Fit
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions25
Contact finish thicknessFlash

Product details

The Amphenol FCI D25S91C4GV00LF is a 25-position D-sub receptacle from the Delta D series, built for applications where a solderless, press-fit termination is required. The 25 female sockets are arranged in two rows within a standard DB-25 shell layout, rated 5A per contact at 300V.

Mating and Mounting Details

This receptacle mates with a standard DB-25 male D-sub plug (solder cup or IDC termination) with UNC 4-40 female screwlocks on the mating side. The through-hole mounting uses press-fit pins — no solder required.

Frequently asked questions

What is the mating connector for D25S91C4GV00LF?

This receptacle mates with a standard DB-25 male D-sub plug that has UNC 4-40 female screwlocks on the mating side.
