44-Position PLCC Socket — Grid and Pitch

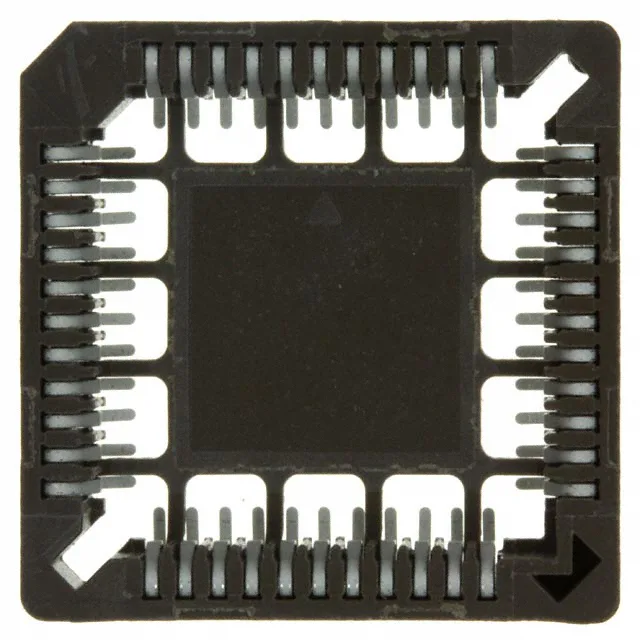

The 69802-044LF is a 44-position PLCC socket arranged in a 4 x 11 grid, designed to accept standard PLCC-44 J-leaded IC packages. Closed frame design protects the IC from mechanical damage and debris, typical for production-level sockets used in automated assembly lines.
Operating temperature from -55°C to 125°C, supported by the PPS housing material which holds its mechanical properties across that span without warping or degrading. This makes the socket suitable for burn-in and environmental test chambers as well as industrial equipment.
RoHS compliant per entry, confirming no restricted substances above threshold limits.
Peer Comparison — 32-Position vs 44-Position
The 69802-032LF and 69802-132LF are 32-position versions (2 x 7, 2 x 9 grid) with the same 0.050" pitch, tin plating, and PPS housing. The 44-position 69802-044LF and 69802-144LF share identical specs except position count. Choose the 44-position for PLCC-44 packages; the 32-position for PLCC-32.
