44-Position PLCC Socket for 0.050" Pitch ICs
The 69802-144LF is a 44-position PLCC socket from Amphenol ICC (FCI), arranged in a 4 x 11 grid on 0.050" (1.27mm) pitch — matching the standard PLCC-44 IC footprint.

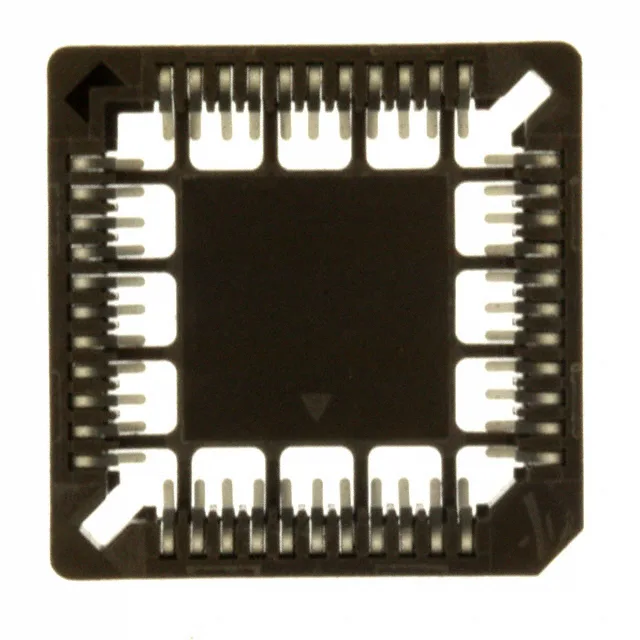

69802-144LF PLCC Socket 44-Position 0.050" Pitch SMT Tin
MPN69802-144LF
Active
Amphenol ICC (FCI) 69802-144LF, PLCC socket, 44 positions (4 x 11 grid), 0.050" (1.27mm) pitch, surface mount, tin-plated phosphor bronze contacts, closed-frame PPS housing rated UL94 V-0, 1 A per contact, -55°C to 125°C.
$2.6500Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Surface Mount |
| Current rating | 1 A |
| Operating temperature | -55°C~125°C |
| Housing material | Polyphenylene Sulfide (PPS) |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.050\" (1.27mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.050\" (1.27mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
| Number of positions or pins | 44 (4 x 11) |
Product details
Frequently asked questions
Where can I buy the 69802-144LF and what is the lead time?
The 69802-144LF is sourced through independent distribution. No stock-holding claim is made on this page.
Is the 69802-144LF RoHS compliant?
Yes, the 69802-144LF is RoHS Compliant per the manufacturer's listing.
What is the pitch of the 69802-144LF?
The pitch is 0.050" (1.27mm) on both the post and mating sides.
What is the current rating of the 69802-144LF?
The socket is rated for 1 A per contact.
Is the 69802-144LF surface mount?
Yes, the termination is surface mount (SMT).
