Amphenol ICC (FCI) 69802-132LF, PLCC-32 socket, 0.050" (1.27mm) pitch, 32 positions (2 x 7, 2 x 9), tin-plated phosphor bronze contacts, 1 A, surface mount, closed frame, PPS housing, UL94 V-0, tube package
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Surface Mount |
| Current rating | 1 A |
| Operating temperature | -55°C~125°C |
| Housing material | Polyphenylene Sulfide (PPS) |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.050\" (1.27mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.050\" (1.27mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
| Number of positions or pins | 32 (2 x 7, 2 x 9) |

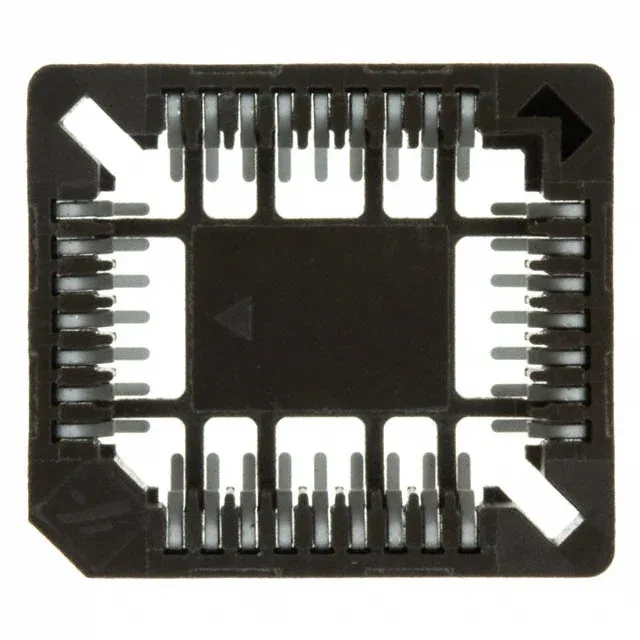

The 69802-132LF: This is a 32-position PLCC socket from Amphenol ICC's 69802 series, arranged in a 2 x 7 and 2 x 9 grid on 0.050" (1.27mm) pitch — the standard footprint for PLCC-32 IC packages. The closed-frame design surrounds the IC on all four sides, providing mechanical support and guiding the device into the contacts without stubbing. Surface-mount termination with tin-plated tails (150 µinch) suits standard reflow profiles.
Yes. The 32-position grid (2 x 7, 2 x 9) on 0.050" pitch matches the JEDEC PLCC-32 footprint. The closed frame guides the IC into the contacts.
Yes, it is RoHS compliant per the specification.
