Conec 163A11179X
MPN163A11179X
Active

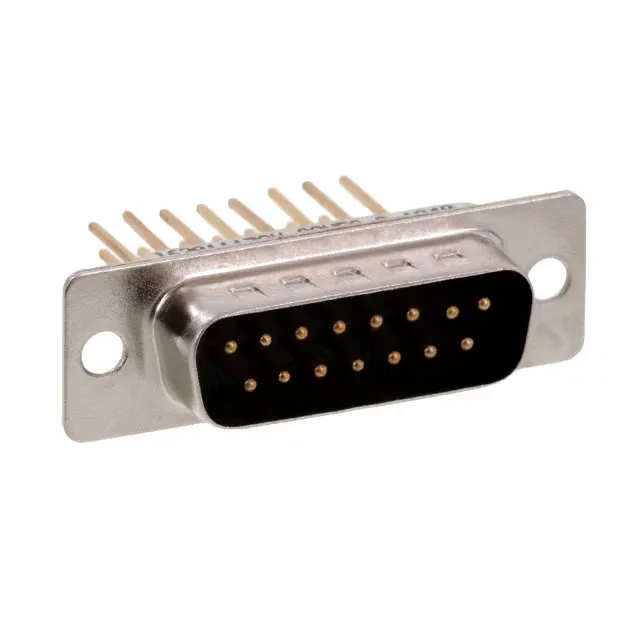

CONN D-SUB PLUG 15POS PNL MNT WW
$8.6Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series163A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 163A |
| Type | Signal |
| Mounting | Panel Mount, Through Hole |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 7.5A |
| IP rating | IP20 |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Grounding Indents |
| Termination | Wire Wrap |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 15 |
| Contact finish thickness | 8.00µin (0.203µm) |
