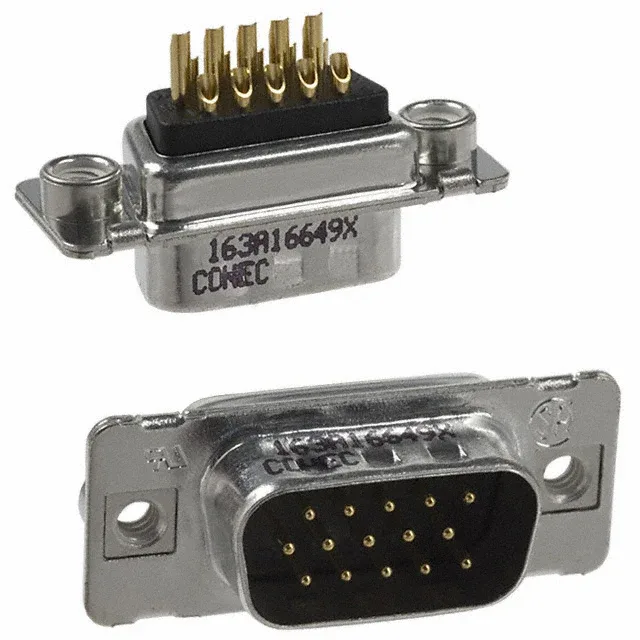

Conec 163A16649X
MPN163A16649X
Active
CONN D-SUB HD PLUG 15P SLDR CUP
$10.24Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series163A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 163A |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | D-Sub, High Density |
| Voltage rating | 60V |
| Current rating | 3A |
| IP rating | IP20 |
| Wire gauge | 22 AWG |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Grounding Indents |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Cable Side (4-40) |
| Rows | 3 |
| Positions | 15 |
| Contact finish thickness | Flash |
