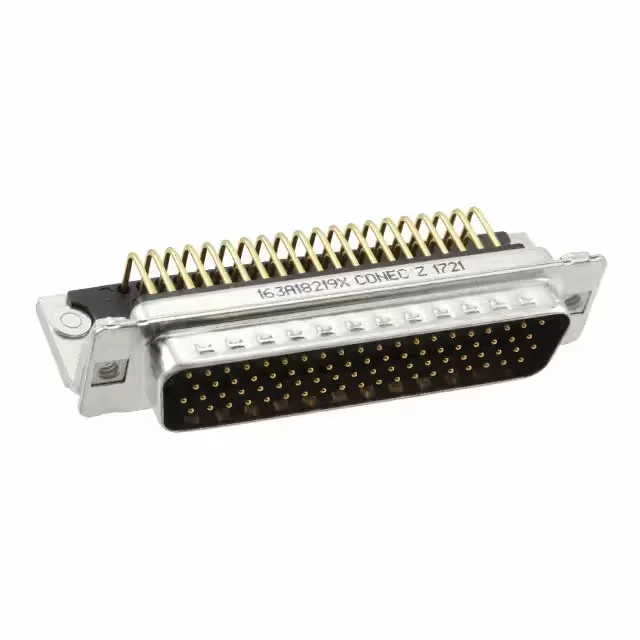

Conec 163A18219X
MPN163A18219X
Active
CONN D-SUB HD PLUG 78P R/A SLDR
$39.84Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series163A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 163A |
| Type | Signal |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | D-Sub, High Density |
| Voltage rating | 60V |
| Current rating | 3A |
| Contact form | Machined |
| IP rating | IP20 |
| Shell size, connector layout | 5 (DD, D) High Density |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Board Lock, Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 4 |
| Backset spacing | 0.314\" (7.98mm) |
| Positions | 78 |
| Contact finish thickness | 8.00µin (0.203µm) |
