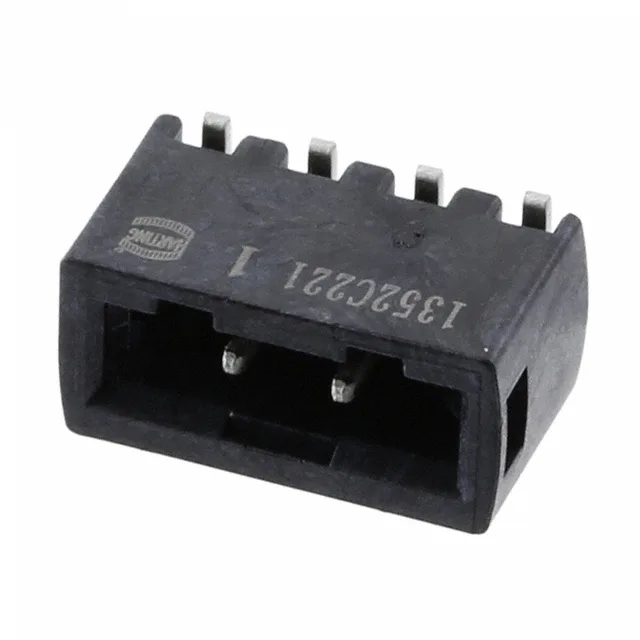

HARTING 14110 Series

10 variants · HARTING

About the HARTING 14110 Series

The HARTING 14110 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, contact material of Copper Alloy and contact mating finish of Tin. Variants differ by features, header orientation and insulation height, so you can match the exact features your application requires using the selection guide below. All listed HARTING 14110 Series part numbers are active and orderable.

Select a variant by

Features: Board Guide · Board Guide, Pick and Place Cap
Header orientation: 90°, Right Angle · Vertical
Insulation height: 0.197\" (5.00mm) · 0.254\" (6.45mm)
Positions: 2 · 3 · 5 · 6 · 7 · 8 · 9
Positions per level: 2 · 3 · 5 · 6 · 7 · 8 · 9

Shared specifications

Color: Black
Contact material: Copper Alloy
Contact mating finish: Tin
Contact tail length: -
Current - IEC: -
Current - UL: 6 A
Housing material: Liquid Crystal Polymer (LCP), Glass Filled
Ingress protection: -
Material flammability rating: UL94 V-0
Mounting type: Surface Mount
Number of levels: 1
Operating temperature: -40°C ~ 125°C

Variant comparison

Parameter	14110213001000	14110213002000	14110313001000	14110513001000	14110513002000	14110613002000
Features	Board Guide, Pick and Place Cap	Board Guide	Board Guide, Pick and Place Cap	Board Guide, Pick and Place Cap	Board Guide	Board Guide
Header orientation	Vertical	90°, Right Angle	Vertical	Vertical	90°, Right Angle	90°, Right Angle
Insulation height	0.254\" (6.45mm)	0.197\" (5.00mm)	0.254\" (6.45mm)	0.254\" (6.45mm)	0.197\" (5.00mm)	0.197\" (5.00mm)
Positions	2	2	3	5	5	6
Positions per level	2	2	3	5	5	6

Request a quote on any HARTING 14110 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
