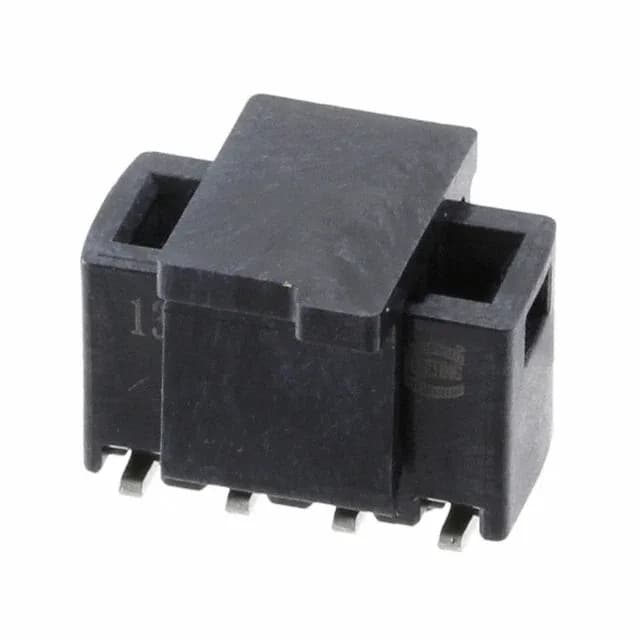

HARTING 14110213001000
MPN14110213001000
Active
TERM BLOCK HDR 2POS VERT 2.54MM
$1.1700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Serieshar-flexicon®
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | har-flexicon® |
| Mounting | Surface Mount |
| Voltage - UL | 160 V |
| Current - UL | 6 A |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation height | 0.254\" (6.45mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Pick and Place Cap |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
