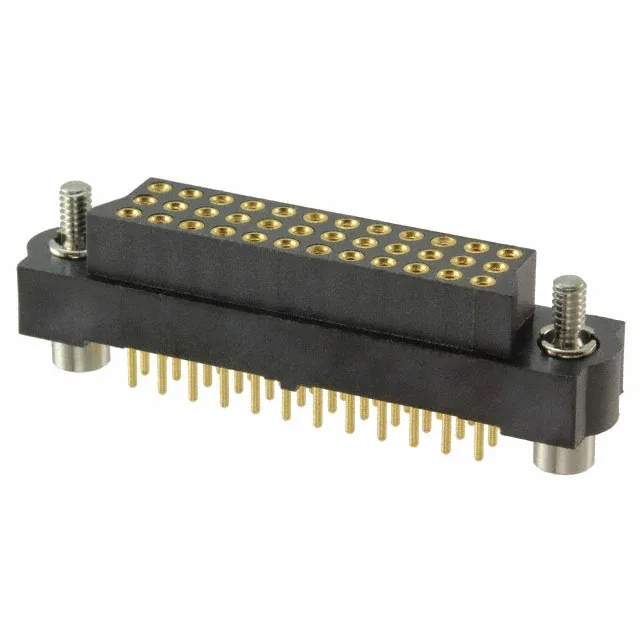

Harwin Inc. M83-LFT1F2N36-0000-000
MPNM83-LFT1F2N36-0000-000
Active
CONN RCPT 36POS 0.079 GOLD PCB
$34.67Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDatamate J-Tek
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Datamate J-Tek |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Screw Lock |
| Voltage rating | 120V |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.330\" (8.38mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated stacking heights | 10.65mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Jackscrews, Mating Flange, Mounting Flange |
| Termination | Solder |
| Applications | Automotive, General Purpose, Military |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 36 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 12.0µin (0.30µm) |
