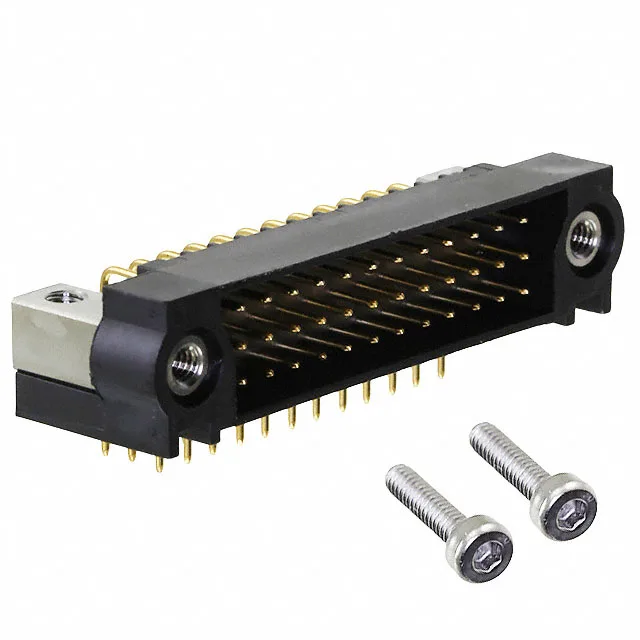

Harwin Inc. M83-LML3M7N36-0000-000
MPNM83-LML3M7N36-0000-000
Active
CONN HEADER R/A 36POS 2MM
$27.56Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDatamate J-Tek
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Datamate J-Tek |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Threaded |
| Voltage rating | 800V |
| Current rating | 2.2A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.303\" (7.70mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Mating Flange, Mounting Flange, Mounting Hardware |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 36 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact length - post | 0.157\" (4.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 29.5µin (0.75µm) |
