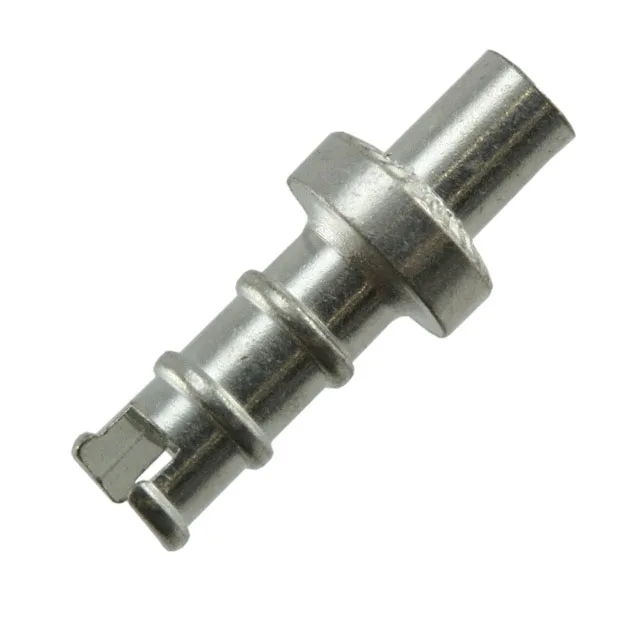

Harwin Inc. H207 Series

5 variants · Harwin Inc.

About the Harwin Inc. H207 Series

The Harwin Inc. H207 Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Tin, contact finish thickness of - and contact material of Brass Alloy. Variants differ by board thickness, diameter - turret head and flange diameter, so you can match the exact board thickness your application requires using the selection guide below. All listed Harwin Inc. H207 Series part numbers are active and orderable.

Select a variant by

Board thickness
0.063\" (1.60mm) · 0.094\" (2.39mm) · 0.126\" (3.20mm)
Diameter - turret head
0.100\" (2.54mm) · 0.125\" (3.18mm) · 0.180\" (4.57mm)
Flange diameter
0.156\" (3.96mm) · 0.187\" (4.75mm) · 0.250\" (6.35mm)
Length - above board
0.257\" (6.52mm) · 0.344\" (8.74mm) · 0.359\" (9.12mm)
Length - below flange
0.094\" (2.39mm) · 0.125\" (3.18mm) · 0.156\" (3.96mm) · 0.171\" (4.34mm)
Length - overall
0.351\" (8.91mm) · 0.382\" (9.70mm) · 0.484\" (12.29mm) · 0.515\" (13.08mm)
Mounting hole diameter
0.079\" ~ 0.083\" (2.01mm ~ 2.11mm) · 0.105\" ~ 0.109\" (2.67mm ~ 2.77mm) · 0.155\" ~ 0.159\" (3.94mm ~ 4.04mm)
Staking side ID
0.046\" ~ 0.048\" (1.17mm ~ 1.22mm) · 0.046\" ~ 0.049\" (1.17mm ~ 1.24mm) · 0.067\" ~ 0.070\" (1.70mm ~ 1.78mm) · 0.109\" ~ 0.112\" (2.77mm ~ 2.85mm)

Shared specifications

Contact finish
Tin
Contact finish thickness
-
Contact material
Brass Alloy
Insulation
Non-Insulated
Insulation color
-
Material - insulation
-
Mounting type
Through Hole
Number of turrets
Triple
Package
Bulk
Terminal type
Single End, Fork
Termination
Swage

Variant comparison

ParameterH2071Z01H2072Z01H2072ZL1H2073Z01H2074Z01
Board thickness0.094\" (2.39mm)0.063\" (1.60mm)0.094\" (2.39mm)0.126\" (3.20mm)0.126\" (3.20mm)
Diameter - turret head0.125\" (3.18mm)0.100\" (2.54mm)0.100\" (2.54mm)0.125\" (3.18mm)0.180\" (4.57mm)
Flange diameter0.187\" (4.75mm)0.156\" (3.96mm)0.156\" (3.96mm)0.187\" (4.75mm)0.250\" (6.35mm)
Length - above board0.359\" (9.12mm)0.257\" (6.52mm)0.257\" (6.52mm)0.359\" (9.12mm)0.344\" (8.74mm)
Length - below flange0.125\" (3.18mm)0.094\" (2.39mm)0.125\" (3.18mm)0.156\" (3.96mm)0.171\" (4.34mm)
Length - overall0.484\" (12.29mm)0.351\" (8.91mm)0.382\" (9.70mm)0.515\" (13.08mm)0.515\" (13.08mm)
Mounting hole diameter0.105\" ~ 0.109\" (2.67mm ~ 2.77mm)0.079\" ~ 0.083\" (2.01mm ~ 2.11mm)0.079\" ~ 0.083\" (2.01mm ~ 2.11mm)0.105\" ~ 0.109\" (2.67mm ~ 2.77mm)0.155\" ~ 0.159\" (3.94mm ~ 4.04mm)
Staking side ID0.067\" ~ 0.070\" (1.70mm ~ 1.78mm)0.046\" ~ 0.049\" (1.17mm ~ 1.24mm)0.046\" ~ 0.048\" (1.17mm ~ 1.22mm)0.067\" ~ 0.070\" (1.70mm ~ 1.78mm)0.109\" ~ 0.112\" (2.77mm ~ 2.85mm)

Request a quote on any Harwin Inc. H207 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Harwin Inc. H207 Series variants differ?
Harwin Inc. H207 Series part numbers differ by board thickness, diameter - turret head, flange diameter and length - above board. Use the selection guide above to pick by board thickness.
How many Harwin Inc. H207 Series part numbers are listed?
5 Harwin Inc. H207 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Harwin Inc. H207 Series?
Request a quote (RFQ) for any Harwin Inc. H207 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
