Harwin Inc. H2071Z01
MPNH2071Z01
Active

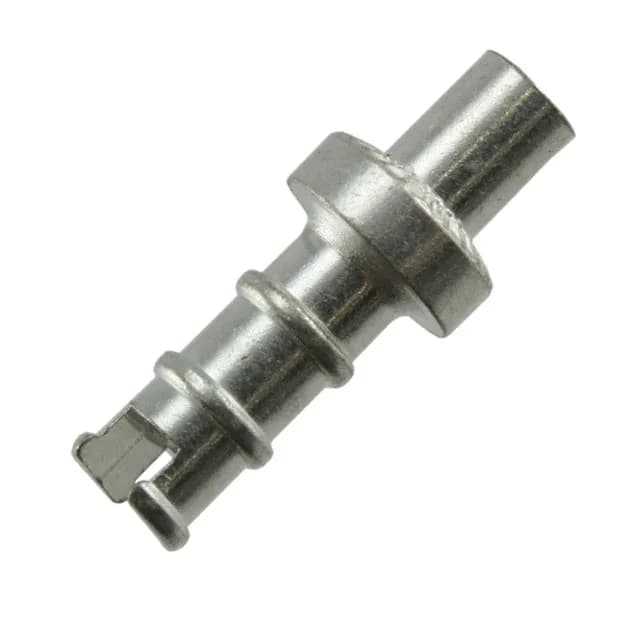

TERM TURRET SLOTTED L=9.12MM TIN
$0.8700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single End, Fork |
| Mounting hole diameter | 0.105\" ~ 0.109\" (2.67mm ~ 2.77mm) |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Contact finish | Tin |
| Board thickness | 0.094\" (2.39mm) |
| Flange diameter | 0.187\" (4.75mm) |
| Staking side ID | 0.067\" ~ 0.070\" (1.70mm ~ 1.78mm) |
| Staking side OD | 0.100\" ~ 0.105\" (2.54mm ~ 2.67mm) |
| Length - overall | 0.484\" (12.29mm) |
| Number of turrets | Triple |
| Length - above board | 0.359\" (9.12mm) |
| Length - below flange | 0.125\" (3.18mm) |
| Diameter - turret head | 0.125\" (3.18mm) |
