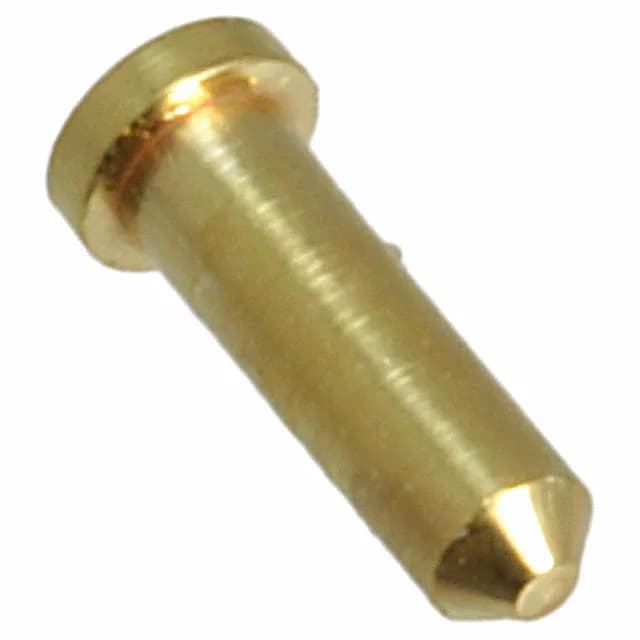

Harwin Inc. H3153-05
MPNH3153-05
Active
$0.4800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Tail type | No Tail |
| Mounting hole diameter | 0.039\" ~ 0.043\" (0.99mm ~ 1.09mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.124\" (3.15mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Manufacturer | Harwin Inc. |
| Contact finish | Gold |
| Flange diameter | 0.057\" (1.45mm) |
| Length - overall | 0.142\" (3.61mm) |
| Pin hole diameter | 0.043\" (1.09mm) |
| Accepts pin diameter | 0.018\" ~ 0.020\" (0.46mm ~ 0.51mm) |
| Contact finish thickness | 3.94µin (0.10µm) |
