Hirose Electric Co Ltd ZX62WD1-B-5PC — USB / HDMI Cable Assemblies

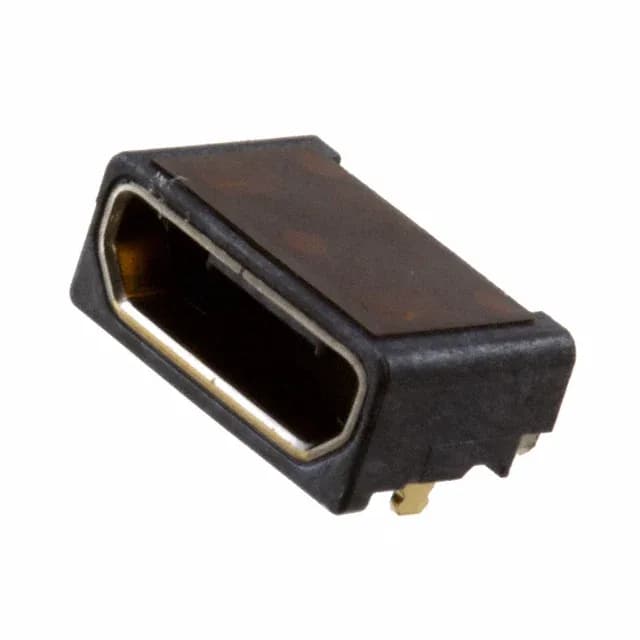

Hirose ZX62WD1-B-5PC USB micro B Receptacle, 1.8A

MPNZX62WD1-B-5PC
Active

Hirose ZX62W USB 2.0 micro B receptacle, 5 contacts, 1.8A, 30VAC, SMD right-angle, shielded, splash proof, gold contacts, board lock.

$2.0500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesZX62W
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ZX62WD1-B-5PC key specifications
ParameterValue
SeriesZX62W
MountingSurface Mount, Right Angle
Connector typeUSB - micro B
Voltage - rated30VAC
Current rating1.8A
Positions5
IP ratingSplash Proof
Mounting featureBottom Mount, Horizontal
Operating temperature-30°C ~ 85°C
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

ZX62WD1-B-5PC additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

The board lock holds it down through reflow, and the stainless steel shield wraps the whole assembly so the USB 2.0 differential pair doesn't pick up ambient noise in a motor drive or RF-heavy enclosure.

The gold contact finish is what makes that cycle count real — tin contacts would gall and oxidize long before 10000 mates. The splash-proof ingress protection means the port survives a rain splash or a wash-down wipe without the contacts corroding, but it's not a submersible IP67 seal — keep the mating cable's boot clean and the port dry when it's unmated.

How It Sits Against the ZX62WRD-B-5PC

The closest sibling in the ZX62W family is the ZX62WRD-B-5PC. Both are USB 2.0 micro B receptacles, both carry the same 1.8 A rating, 10000 mating cycles, splash-proof seal, and gold contacts. The ZX62WRD-B-5PC is a reverse-mount, horizontal receptacle, which flips the port to the top side of the board. If your enclosure has the PCB mounted upside-down relative to the cable exit, the reverse-mount version saves a board spin or a right-angle cable adapter.

Frequently asked questions

What is the mating cycle rating of the ZX62WD1-B-5PC?

The ZX62WD1-B-5PC is rated for 10000 mating cycles, which is double the typical micro USB connector. This makes it suitable for devices that see frequent cable connections over a multi-year service life.
