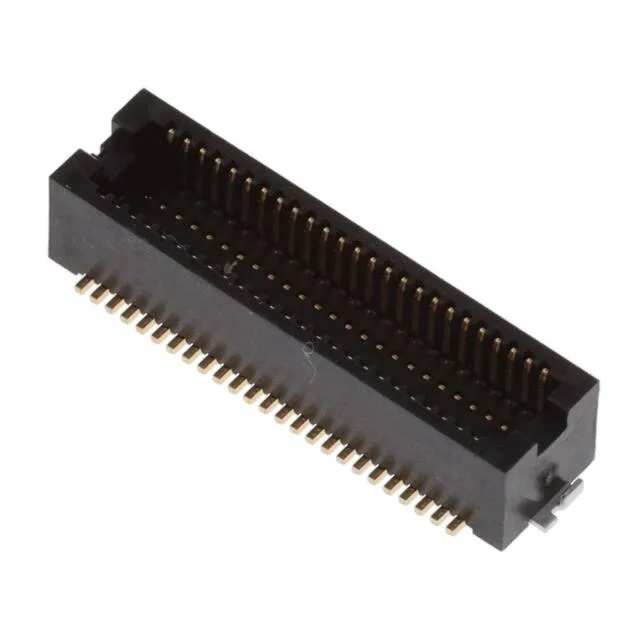

DF12NB(3.5)-40DP-0.5V(51)
Hirose Electric Co Ltd
400.020\" (0.50mm)DF12
Ref. price$1.3200
Lead time on requestGet quote ›
Hirose Electric Co Ltd DF12NB Series
32 variants · Hirose Electric Co Ltd
About the Hirose Electric Co Ltd DF12NB Series
The Hirose Electric Co Ltd DF12NB Series series groups 32 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Gold, contact finish thickness of 8.00µin (0.203µm) and features of Solder Retention. Variants differ by connector type, height above board and mated stacking heights, so you can match the exact connector type your application requires using the selection guide below. All listed Hirose Electric Co Ltd DF12NB Series part numbers are active and orderable.
Select a variant by
- Connector type
- Header, Outer Shroud Contacts · Receptacle, Center Strip Contacts
- Height above board
- 0.087\" (2.20mm) · 0.091\" (2.30mm) · 0.106\" (2.70mm) · 0.110\" (2.80mm) · 0.130\" (3.30mm) · 0.169\" (4.30mm)
- Mated stacking heights
- 3mm · 3.5mm · 3.5mm, 4mm, 5mm · 4mm · 5mm
- Positions
- 10 · 14 · 20 · 30 · 32 · 40 · 50
Shared specifications
- Contact finish
- Gold
- Contact finish thickness
- 8.00µin (0.203µm)
- Features
- Solder Retention
- Mounting type
- Surface Mount
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Pitch
- 0.020\" (0.50mm)
- Rows
- 2
Variant comparison
| Parameter | DF12NB-20DS-0.5V(51) | DF12NB(3.5)-40DP-0.5V(51) | DF12NB(4.0)-50DP-0.5V(51) | DF12NB(5.0)-50DP-0.5V(51) | DF12NB(3.0)-10DP-0.5V(51) | DF12NB(3.0)-10DS-0.5V(51) |
|---|---|---|---|---|---|---|
| Connector type | Receptacle, Center Strip Contacts | Header, Outer Shroud Contacts | Header, Outer Shroud Contacts | Header, Outer Shroud Contacts | Header, Outer Shroud Contacts | Receptacle, Center Strip Contacts |
| Height above board | 0.106\" (2.70mm) | 0.110\" (2.80mm) | 0.130\" (3.30mm) | 0.169\" (4.30mm) | 0.091\" (2.30mm) | 0.087\" (2.20mm) |
| Mated stacking heights | 3.5mm, 4mm, 5mm | 3.5mm | 4mm | 5mm | 3mm | 3mm |
| Positions | 20 | 40 | 50 | 50 | 10 | 10 |
Request a quote on any Hirose Electric Co Ltd DF12NB Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Hirose Electric Co Ltd DF12NB Series variants differ?
- Hirose Electric Co Ltd DF12NB Series part numbers differ by connector type, height above board, mated stacking heights and positions. Use the selection guide above to pick by connector type.
- How many Hirose Electric Co Ltd DF12NB Series part numbers are listed?
- 32 Hirose Electric Co Ltd DF12NB Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Hirose Electric Co Ltd DF12NB Series?
- Request a quote (RFQ) for any Hirose Electric Co Ltd DF12NB Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
