PL75-R-PC
Hirose Electric Co Ltd
Through Hole-30°C~85°CPL75
Ref. price$11.1700
Lead time on requestGet quote
Hirose Electric Co Ltd PL75 Series
2 variants · Hirose Electric Co Ltd
About the Hirose Electric Co Ltd PL75 Series
The Hirose Electric Co Ltd PL75 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body finish of Gold, body material of Brass and cable group of -. Variants differ by frequency - max, impedance and mounting, so you can match the exact frequency - max your application requires using the selection guide below. All listed Hirose Electric Co Ltd PL75 Series part numbers are active and orderable.
Select a variant by
- Frequency - max
- 1.5 GHz · 3 GHz
- Impedance
- 75 Ohms · 75Ohm
- Mounting
- Through Hole · Through Hole, Right Angle
- Operating temperature
- -30°C ~ 85°C · -30°C~85°C
Shared specifications
- Body finish
- Gold
- Body material
- Brass
- Cable group
- -
- Center contact material
- Phosphor Bronze
- Center contact plating
- Gold
- Connector type
- Receptacle, Male Pin
- Contact termination
- Solder
- Dielectric material
- Polytetrafluoroethylene (PTFE)
- Fastening type
- Snap-On
- Features
- -
- Housing color
- Gold
- Includes
- -
Variant comparison

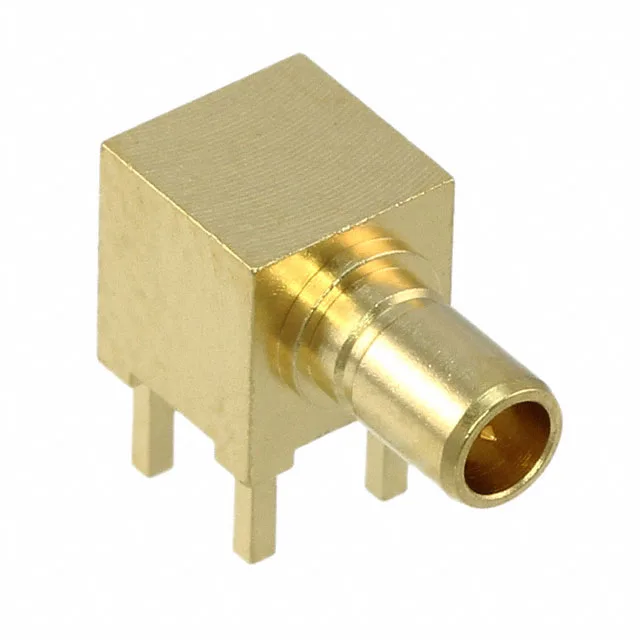

| Parameter | PL75-R-PC | PL75-LR-PC |
|---|---|---|
| Frequency - max | 3 GHz | 1.5 GHz |
| Impedance | 75Ohm | 75 Ohms |
| Mounting | Through Hole | Through Hole, Right Angle |
| Operating temperature | -30°C~85°C | -30°C ~ 85°C |
Request a quote on any Hirose Electric Co Ltd PL75 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
