75 Ohm Ultra-Miniature Receptacle — 3 GHz, Snap-On

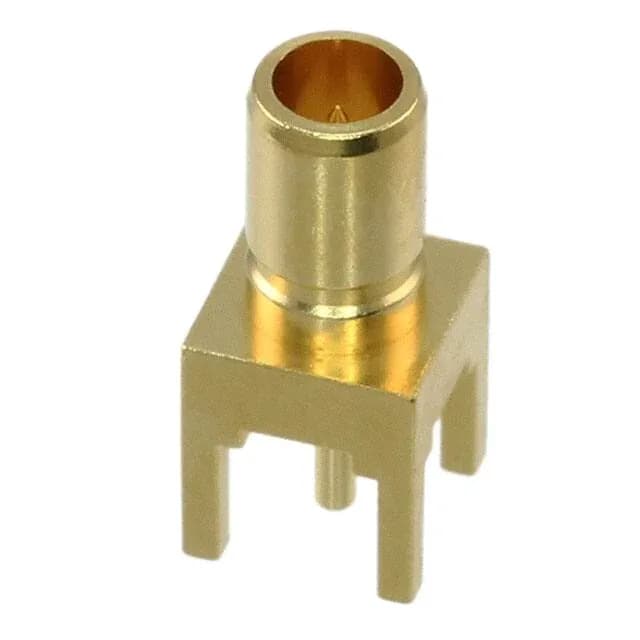

The Hirose PL75-R-PC is a 75 Ohm ultra-miniature (UM) receptacle with a male pin contact, part of the PL75 series. It uses a snap-on fastening mechanism for quick, positive mating in tight panel or board-edge positions. Rated to 3 GHz with a PTFE dielectric, this is a signal-path component for 75 Ohm baseband video, broadcast, or test-equipment interconnects where board space is limited. Through-hole solder termination for both the centre pin and the shield, with a single-port configuration.
The PL75-R-PC mates with a PL75-series female plug (male-pin receptacle to female-jack plug). The snap-on collar provides audible and tactile lock confirmation — no tool required for engagement or release.
