Overview

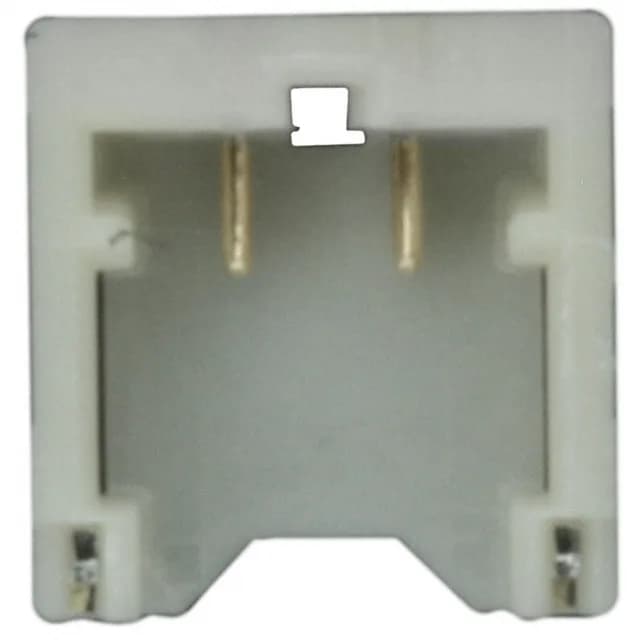

The BM02B-ACHSS-GAN-TF is the 2-circuit member of JST's ACH header series. It carries gold-plated mating contacts rated 2 A and 50 V, mounts surface-mount right-angle with solder termination, and uses a 1.20 mm pitch.
How it compares
Within JST's 2-position SMT right-angle header family, the BM02B-ACHSS-GAN-TF carries a 2 A rating and gold mating contacts, versus the SM02B-NSHSS-TB which is rated 1 A with tin mating contacts — the pitch and footprint differ, so select by current and contact finish requirements.
