Overview

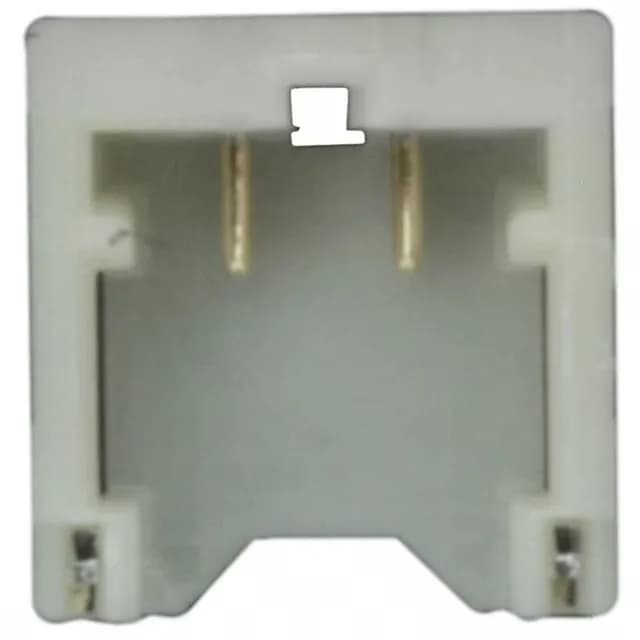

The BM02B-ACHSS-GAN-TF(LF)(SN) is the 2-circuit member of JST's ACH series board-to-wire header line. It carries gold-plated mating contacts rated 2 A and 50 V, mounts surface-mount right-angle with solder termination, and uses a 3-wall shrouded housing with detent lock.
How it compares
Within JST's 2-position SMT right-angle header offerings, the BM02B-ACHSS-GAN-TF(LF)(SN) carries a 2 A rating versus the 1 A of the SM02B-NSHSS-TB (NSH series) and SM02B-SHLS-TF (SHL series) — the pitch, footprint, and mounting orientation differ across these series, so select by current requirement and PCB layout.
