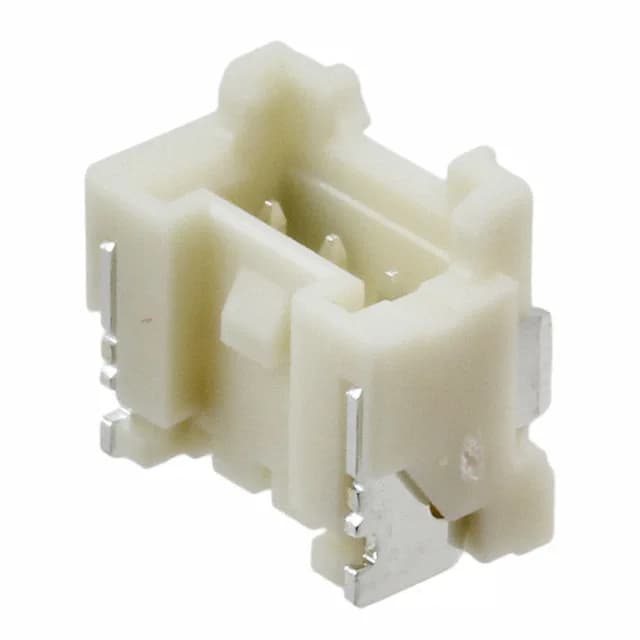

JST PA series header, order code SM03B-PASS-TBT, 3 positions, single row, 2.00 mm pitch, 3 A, 250 V, tin-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | PA |
| Voltage | 250 V |
| Current | 3 A |
| Mounting | Right Angle, Surface Mount |
| Connector size | Header |
| Contact material | Copper Alloy |
| Insulation material | Nylon, Polyamide (PA) |
| Pitch | 0.079" (2.00 mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Positions | 3 |
| Shrouding | Shrouded - 4 Wall |
| Orientation | Board to Cable/Wire |
| Termination | Solder |
| Gender (Contact) | Male Pin |
| Contact plating | Tin |
| Locking (Fastening) | Locking Ramp |
| Rows | 1 |
The SM03B-PASS-TBT is the 3-circuit member of JST's PA series board-to-wire header line. It carries tin-plated contacts rated 3 A and 250 V, mounts surface-mount right-angle on a 2.00 mm pitch, and uses a shrouded 4-wall design with locking ramp.
Within the PA series the SM03B-PASS-TBT carries 3 positions against the 2 of the SM02B-PASS-TBT — the 2.00 mm pitch, locking ramp, and shrouding are shared across the series, so match the position count to circuit count.
