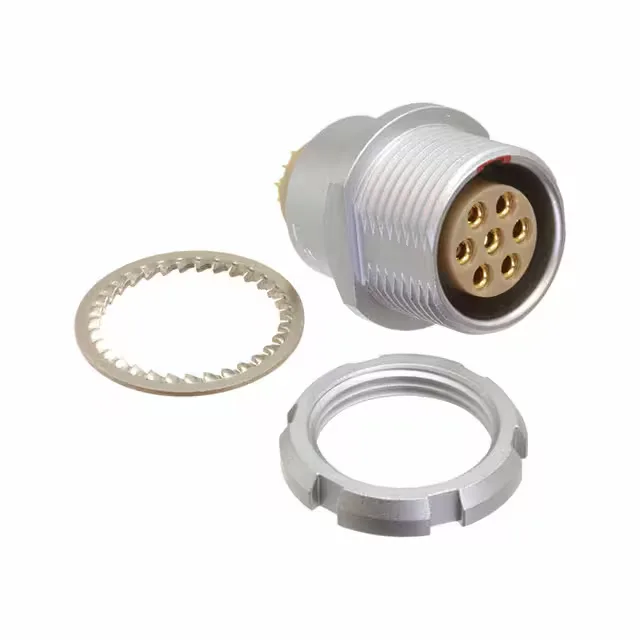

LEMO EEG.2B.307.CLL
MPNEEG.2B.307.CLL
Active
CONN RCPT FMALE 7P GOLD SLDR CUP
$52.9Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series2B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 2B |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Current rating | 11A |
| IP rating | IP50 - Dust Protected |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -55°C ~ 250°C |
| Color | Silver |
| Shell material | Brass |
| Insert material | Polyetheretherketone (PEEK) |
| Contact material | Bronze |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Shielding | Shielded |
| Orientation | G |
| Termination | Solder Cup |
| Shell finish | Chrome |
| Positions | 7 |
| Shell size - insert | 307 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 59.0µin (1.50µm) |
