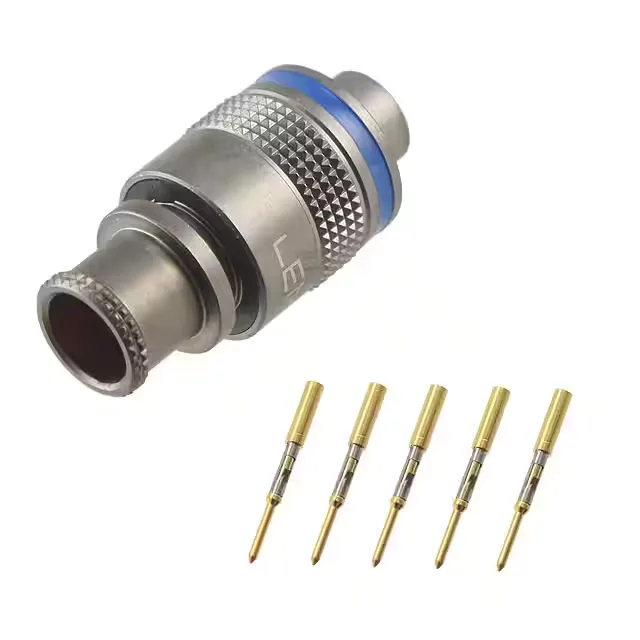

LEMO FMN.0M.305.XLCT
MPNFMN.0M.305.XLCT
Active
CONN PLUG MALE 5POS GOLD CRIMP
$83.65Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0M
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 0M |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Threaded |
| Current rating | 6.5A |
| IP rating | IP68 - Dust Tight, Waterproof |
| Cable opening | 0.315\" (8.00mm) |
| Operating temperature | -55°C ~ 200°C |
| Color | Gray |
| Shell material | Aluminum Alloy |
| Insert material | Polyetheretherketone (PEEK) |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Package | Bulk |
| Features | Coupling Nut |
| Shielding | Shielded |
| Orientation | N (Normal) |
| Termination | Crimp |
| Applications | Aerospace, Automotive, Aviation, Military |
| Shell finish | Nickel |
| Positions | 5 |
| Shell size - insert | 305 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
