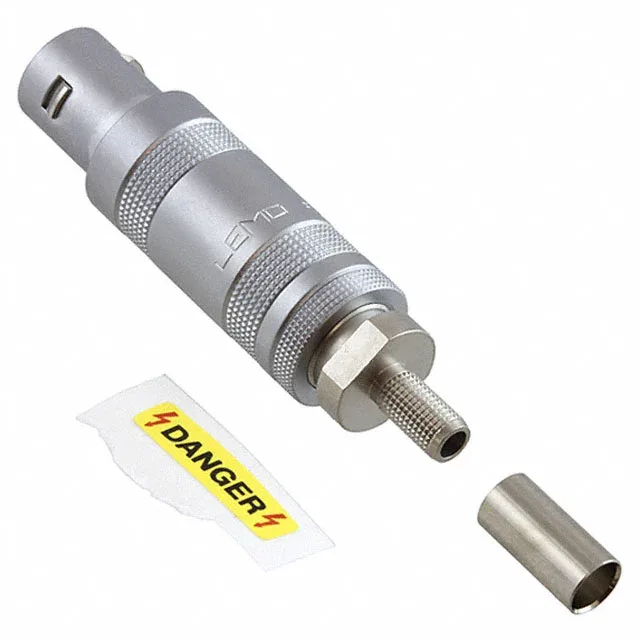

LEMO FFR.1S.408.CLAE46
MPNFFR.1S.408.CLAE46
Active
CONN PLUG MALE 1P GOLD SLDR CUP
$71.91Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series1S
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 1S |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Push-Pull |
| Current rating | 6A |
| IP rating | IP50 - Dust Protected |
| Cable opening | 0.157\" ~ 0.181\" (4.00mm ~ 4.60mm) |
| Operating temperature | -55°C ~ 250°C |
| Color | Silver |
| Shell material | Brass |
| Insert material | Polyetheretherketone (PEEK) |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Brass, Chrome |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Shell finish | Chrome |
| Positions | 1 |
| Shell size - insert | 408 |
| Contact finish - mating | Gold |
