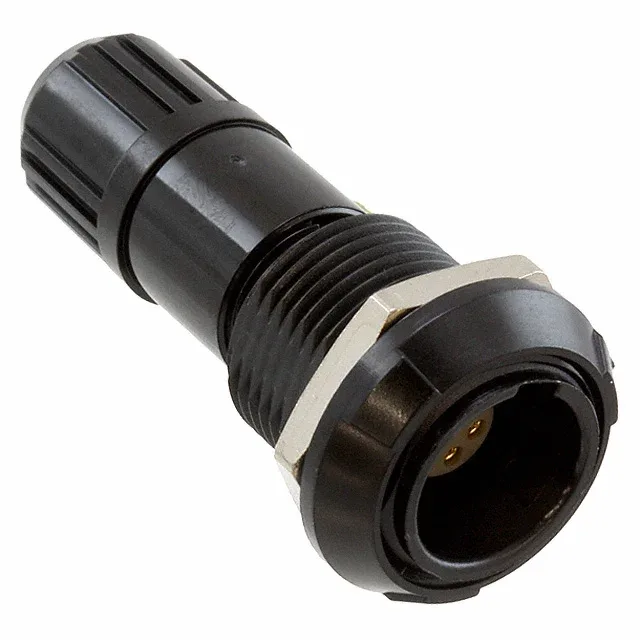

LEMO PTG.M0.6NL.LC65N
MPNPTG.M0.6NL.LC65N
Active
CONN RCPT FMALE 6P GOLD SLDR CUP
$29.22Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series1P
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 1P |
| Mounting | Free Hanging (In-Line); Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull, Detent Lock |
| Current rating | 6A |
| IP rating | IP50 - Dust Protected |
| Mounting feature | Front and Rear Side Nut |
| Cable opening | 0.209\" ~ 0.256\" (5.30mm ~ 6.50mm) |
| Operating temperature | -50°C ~ 150°C |
| Color | Black |
| Shell material | Polysulfone (PSU) |
| Insert material | Polyetheretherketone (PEEK) |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Plastic |
| Backshell material, plating | Polysulfone (PSU) |
| Package | Bulk |
| Features | Backshell |
| Shielding | Unshielded |
| Orientation | G |
| Termination | Solder Cup |
| Applications | Automotive, Industrial, Medical, Testing Equipment & Measurement |
| Positions | 6 |
| Shell size - insert | M06 |
| Contact finish - mating | Gold |
