LEMO PXG.M0.8GG.NG
MPNPXG.M0.8GG.NG
Active

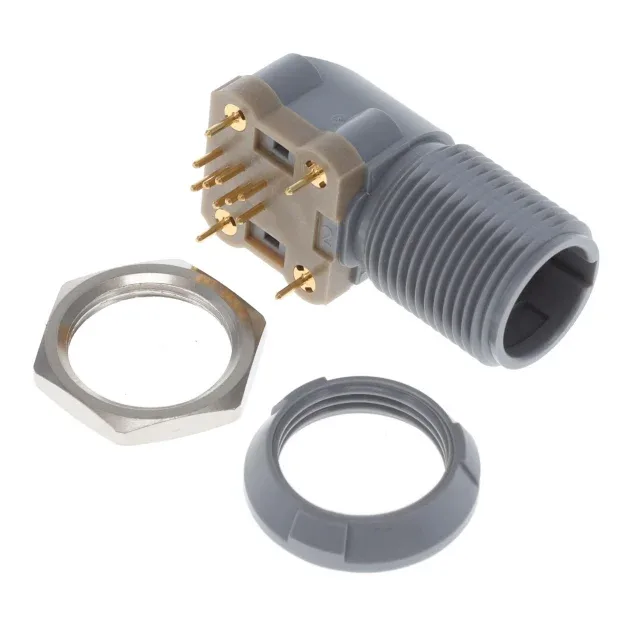

CONN RCPT FMALE 8POS GOLD SOLDER
$41.42Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series1P
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 1P |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull, Detent Lock |
| Current rating | 5A |
| IP rating | IP50 - Dust Protected |
| Mounting feature | Bulkhead - Front or Rear Side Nut |
| Operating temperature | -50°C ~ 150°C |
| Color | Gray |
| Shell material | Polysulfone (PSU) |
| Primary material | Plastic |
| Backshell material, plating | Polysulfone (PSU) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Backshell |
| Shielding | Unshielded |
| Orientation | G |
| Termination | Solder |
| Applications | Automotive, Industrial, Medical, Testing Equipment & Measurement |
| Positions | 8 |
| Shell size - insert | M08 |
| Contact finish - mating | Gold |
