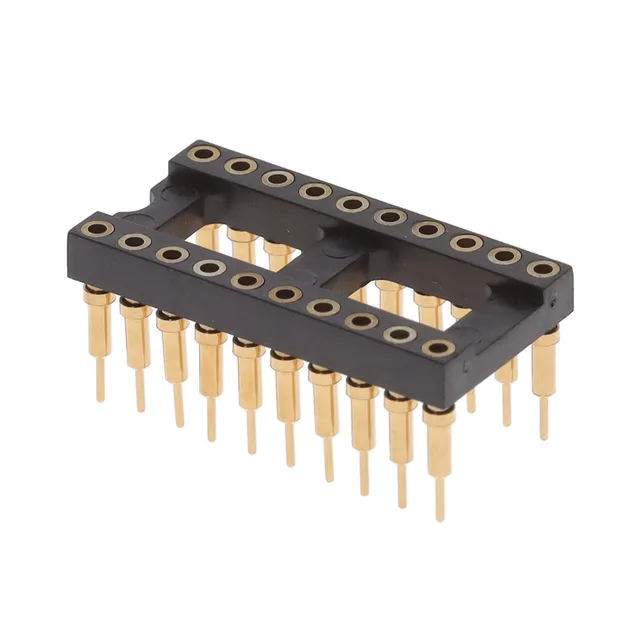

Mill-Max Manufacturing Corp. 612-11-420-41-001000
MPN612-11-420-41-001000
Active
SKT CARRIER SOLDRTL
$20.68Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series612
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.1\" (2.54mm) Row Spacing |
| Series | 612 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Wire Wrap |
| Pitch - post | 0.039\" (1.00mm) |
| Pitch | 0.039\" (1.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
