Mill-Max Manufacturing Corp. 830-10-050-20-001000
MPN830-10-050-20-001000
Active
CONN HEADER R/A 50POS 2MM
$21.5Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series830
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 830 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.079\" (2.00mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 50 |
| Contact finish - post | Gold |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |

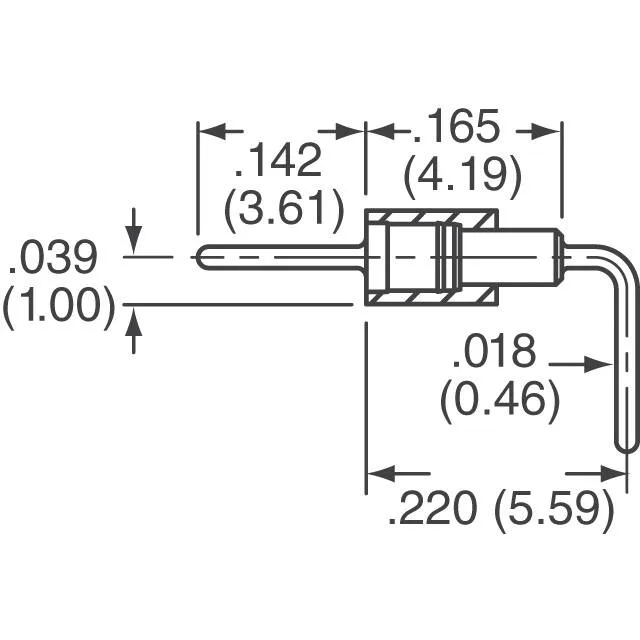

| Contact length - mating | 0.142\" (3.61mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
