Mill-Max Manufacturing Corp. 835-43-004-40-030001
MPN835-43-004-40-030001
Active

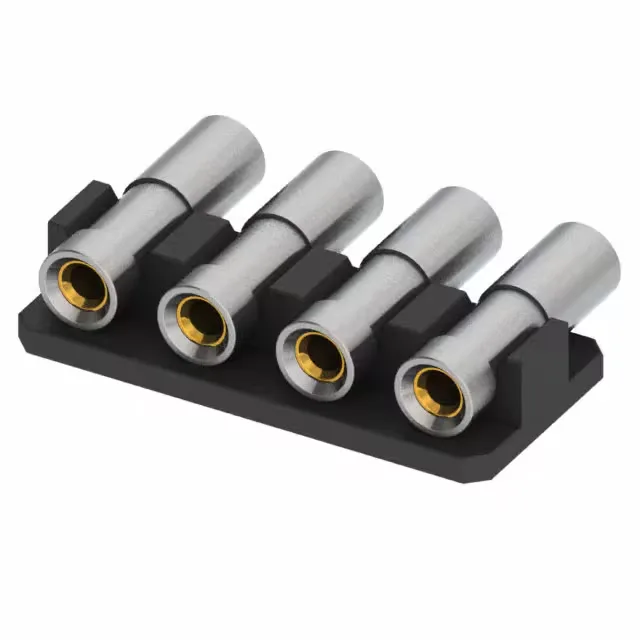

CONN RCPT 4POS 0.1 GOLD SMD R/A
$2.88Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series835
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 835 |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.083\" (2.10mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
