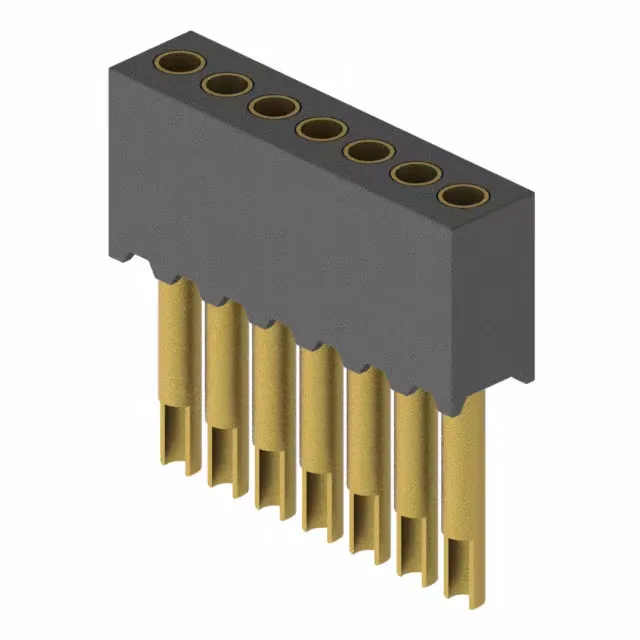

Mill-Max Manufacturing Corp. 851-13-007-10-003000
MPN851-13-007-10-003000
Active
CONN RCPT 7POS 0.05 GOLD PCB
$18.72Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series851
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 851 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.159\" (4.05mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder Cup |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 7 |
| Contact finish - post | Gold |
| Contact length - post | 0.181\" (4.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
