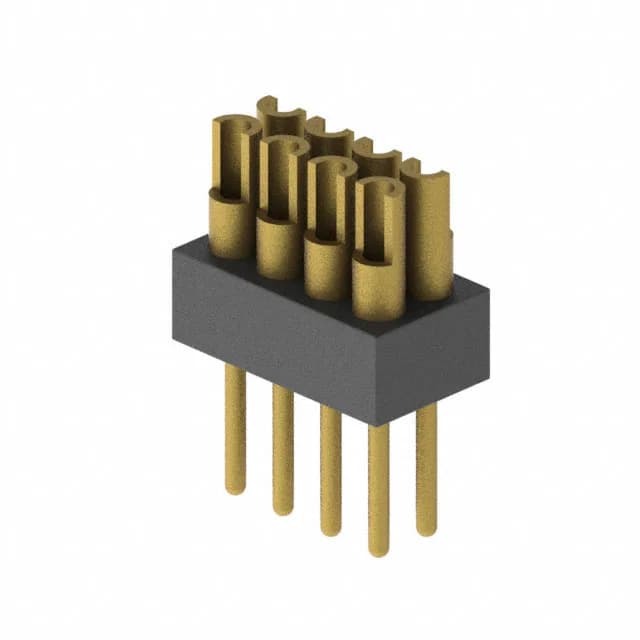

Mill-Max Manufacturing Corp. 852-10-008-10-003000
MPN852-10-008-10-003000
Active
CONN HEADER VERT 8POS 1.27MM
$4.9600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series852
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 852 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.075\" (1.90mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 8 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.122\" (3.10mm) |
| Overall contact length | 0.303\" (7.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.100\" (2.54mm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
