Mill-Max Manufacturing Corp. 862-40-021-00-180000
MPN862-40-021-00-180000
Active
CONN HEADER VERT 21POS 1.78MM
$3.83Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series862
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 862 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass Alloy |
| Insulation color | Black |

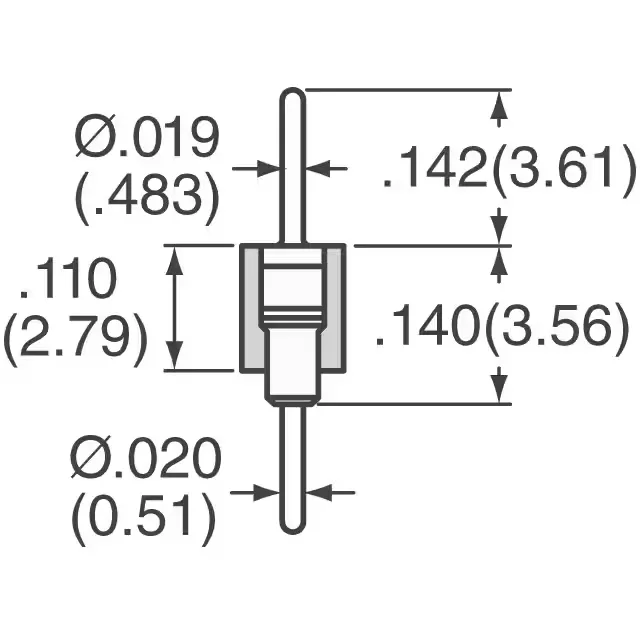

| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.070\" (1.78mm) |
| Positions | 21 |
| Contact finish - post | Gold |
| Contact length - post | 0.117\" (2.97mm) |
| Overall contact length | 0.399\" (10.13mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.142\" (3.61mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
