Mill-Max Manufacturing Corp. 8874-0-15-15-11-27-10-0
MPN8874-0-15-15-11-27-10-0
Active

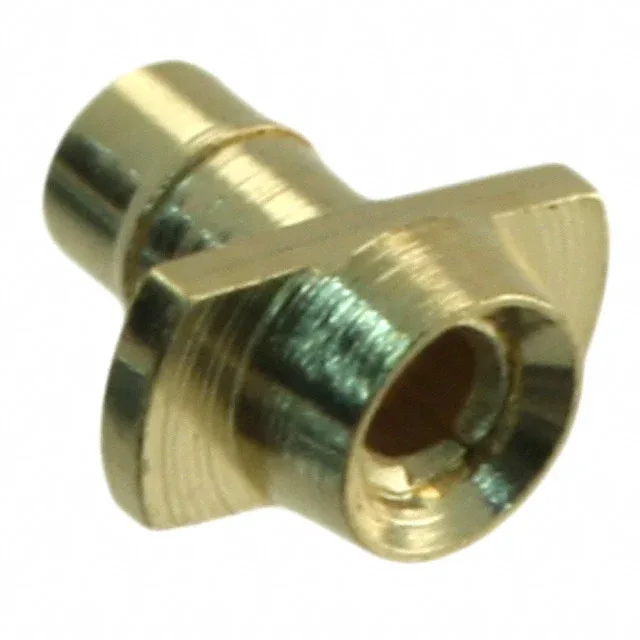

CONN PIN RCPT .015-.020 SMD
$0.34Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series8874
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 8874 |
| Tail type | No Tail |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.088\" (2.24mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Surface Mount - Bottom Entry |
| Contact finish | Gold |
| Flange diameter | 0.093\" (2.36mm) |
| Length - overall | 0.088\" (2.24mm) |
| Pin hole diameter | 0.031\" (0.79mm) |
| Accepts pin diameter | 0.015\" ~ 0.020\" (0.38mm ~ 0.51mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
