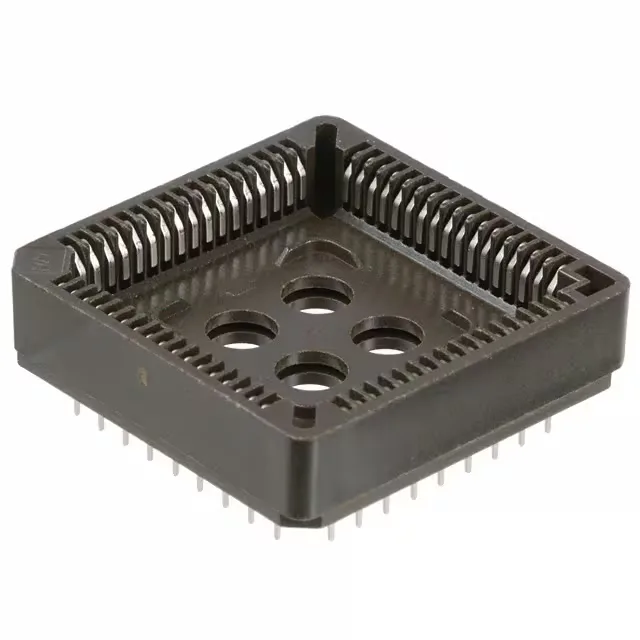

Mill-Max Manufacturing Corp. 940-44-068-24-000000
MPN940-44-068-24-000000
Active
CONN SOCKET PLCC 68POS TIN
$2.82Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series940
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Series | 940 |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.130\" (3.30mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
| Number of positions or pins | 68 (4 x 17) |
