110-93-316-41-001000
Mill-Max Manufacturing Corp.
DIP, 0.3\" (7.62mm) Row Spacing110Tube
Ref. price$1.9000
Lead time on requestGet quote ›
Mill-Max Manufacturing Corp. 1109 Series
15 variants · Mill-Max Manufacturing Corp.
About the Mill-Max Manufacturing Corp. 1109 Series
The Mill-Max Manufacturing Corp. 1109 Series series groups 15 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish - post of Tin-Lead, contact finish thickness - post of 200.0µin (5.08µm) and contact material - mating of Beryllium Copper. Variants differ by contact finish - mating, contact finish thickness - mating and number of positions or pins, so you can match the exact contact finish - mating your application requires using the selection guide below. All listed Mill-Max Manufacturing Corp. 1109 Series part numbers are active and orderable.
Select a variant by
- Contact finish - mating
- Gold · Tin-Lead
- Contact finish thickness - mating
- 10.0µin (0.25µm) · 30.0µin (0.76µm) · 200.0µin (5.08µm)
- Number of positions or pins
- 4 (2 x 2) · 8 (2 x 4) · 14 (2 x 7) · 16 (2 x 8) · 24 (2 x 12) · 28 (2 x 14) · 40 (2 x 20) · 48 (2 x 24)
- Type
- DIP, 0.3\" (7.62mm) Row Spacing · DIP, 0.4\" (10.16mm) Row Spacing · DIP, 0.6\" (15.24mm) Row Spacing
Shared specifications
- Contact finish - post
- Tin-Lead
- Contact finish thickness - post
- 200.0µin (5.08µm)
- Contact material - mating
- Beryllium Copper
- Contact material - post
- Brass Alloy
- Contact resistance
- -
- Current rating
- 3 A
- Features
- Open Frame
- Housing material
- Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
- Material flammability rating
- -
- Mounting type
- Through Hole
- Operating temperature
- -55°C ~ 125°C
- Package
- Tube
Variant comparison

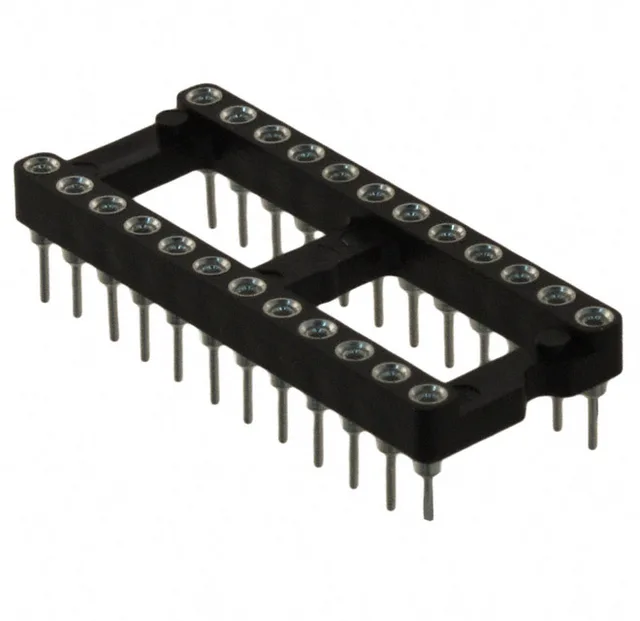

| Parameter | 110-93-316-41-001000 | 110-99-316-41-001000 | 110-99-640-41-001000 | 110-99-424-41-001000 | 110-91-304-41-001000 | 110-93-308-41-001000 |
|---|---|---|---|---|---|---|
| Contact finish - mating | Gold | Tin-Lead | Tin-Lead | Tin-Lead | Gold | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) | 200.0µin (5.08µm) | 200.0µin (5.08µm) | 200.0µin (5.08µm) | 10.0µin (0.25µm) | 30.0µin (0.76µm) |
| Number of positions or pins | 16 (2 x 8) | 16 (2 x 8) | 40 (2 x 20) | 24 (2 x 12) | 4 (2 x 2) | 8 (2 x 4) |
| Type | DIP, 0.3\" (7.62mm) Row Spacing | DIP, 0.3\" (7.62mm) Row Spacing | DIP, 0.6\" (15.24mm) Row Spacing | DIP, 0.4\" (10.16mm) Row Spacing | DIP, 0.3\" (7.62mm) Row Spacing | DIP, 0.3\" (7.62mm) Row Spacing |
Request a quote on any Mill-Max Manufacturing Corp. 1109 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Mill-Max Manufacturing Corp. 1109 Series variants differ?
- Mill-Max Manufacturing Corp. 1109 Series part numbers differ by contact finish - mating, contact finish thickness - mating, number of positions or pins and type. Use the selection guide above to pick by contact finish - mating.
- How many Mill-Max Manufacturing Corp. 1109 Series part numbers are listed?
- 15 Mill-Max Manufacturing Corp. 1109 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Mill-Max Manufacturing Corp. 1109 Series?
- Request a quote (RFQ) for any Mill-Max Manufacturing Corp. 1109 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
