Mill-Max Manufacturing Corp. 110-99-424-41-001000 — IC & Device Sockets

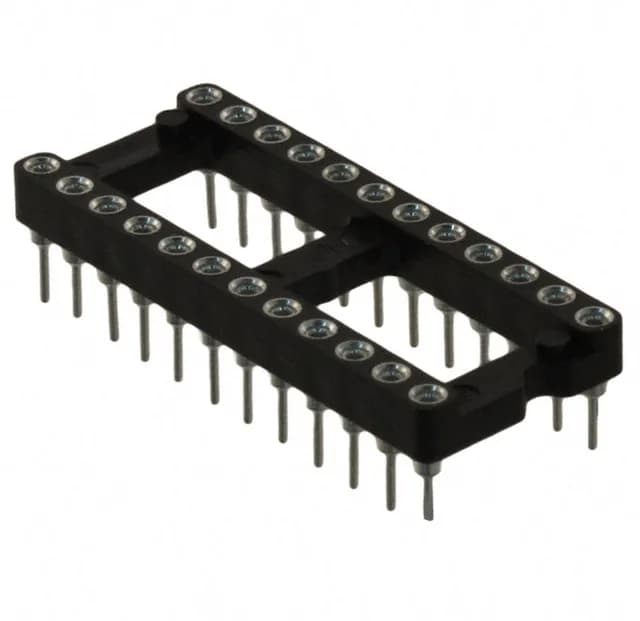

Mill-Max 110-99-424-41-001000 DIP Socket 24-Pin 0.100" Pitch

MPN110-99-424-41-001000
Active

Mill-Max 110 series DIP socket, order code 110-99-424-41-001000, 24 positions (2 x 12), 0.100" (2.54 mm) pitch, 3 A, tin-lead plated mating contacts, through-hole, solder termination, open frame.

$1.6600Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series110
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

110-99-424-41-001000 key specifications
ParameterValue
TypeDIP, 0.4\" (10.16mm) Row Spacing
Series110
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 125°C
Housing materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact material - postBrass Alloy
Contact material - matingBeryllium Copper
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)

All specifications

110-99-424-41-001000 additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact finish - matingTin-Lead
Termination post length0.125\" (3.18mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating200.0µin (5.08µm)
Number of positions or pins24 (2 x 12)

Product details

24-pin DIP socket, 0.100" pitch

The 110-99-424-41-001000 is the 24-position (2 x 12) member of Mill-Max's 110 series open-frame DIP socket line, with 0.100" pitch on both the mating and post sides. Rated 3 A per contact, with tin-lead plating on both the mating and post surfaces, and a beryllium copper mating contact. Operating temperature range is -55°C to 125°C.

Through-hole termination, 0.125" post length

Termination is solder through-hole with a post length of 0.125" (3.18 mm). The 0.100" (2.54 mm) pitch matches standard DIP footprints, and the 0.4" (10.16 mm) row spacing aligns with common 24-pin DIP layouts.
