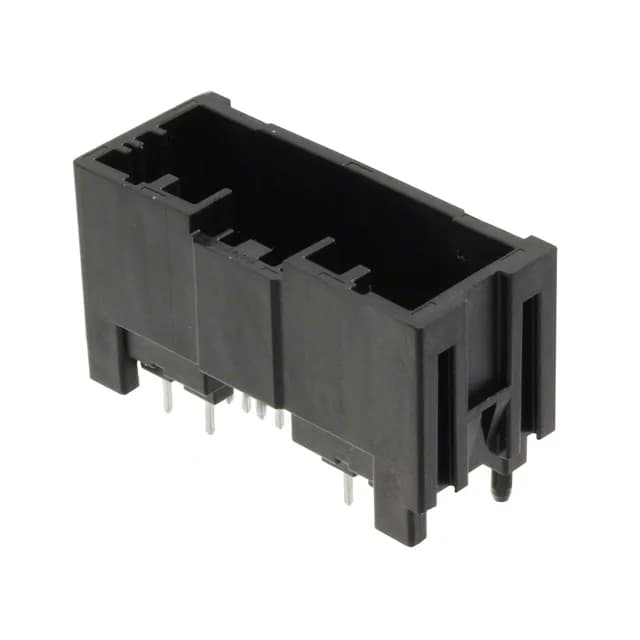

Molex Mini50 34958 series header, 0349580340, 34-position, 3-row, shrouded 4-wall, through-hole solder termination, tin-plated contacts, latch lock, black SPS housing, tray packaging.
| Parameter | Value |
|---|---|
| Series | Mini50 34958 |
| Type | Male Blade |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.697\" (17.70mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Rectangular |
| Rows | 3 |
| Positions | 34 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 0349580340: The 4-wall shrouding and latch lock keep the mating connector aligned and seated under vibration—typical for engine-compartment or interior harness connections where a loose mate means a no-start or a diagnostic trouble code.
The 0349580340 is a 34-position, 3-row header with all positions loaded. The pinout follows the standard Mini50 34958 series layout—row A, B, C across the 3 rows. For the exact circuit-to-pin mapping, reference the series product drawing; the header itself is unkeyed on the pin side.
The 4-wall shroud and latch lock are designed for a positive-lock mate—confirm the receptacle part number against the circuit count and row configuration before ordering.
