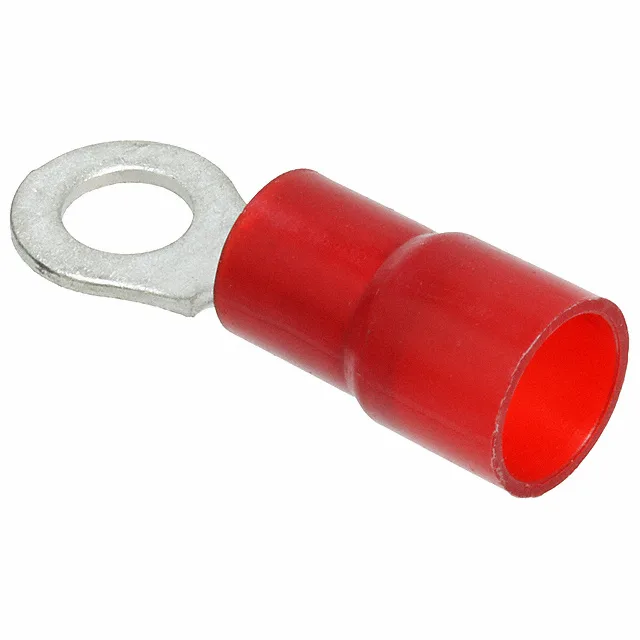

Molex 190670011
MPN190670011
Active
CONN RING CIRC 8AWG #1/4 CRIMP
$1.45Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesNylaKrimp
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | NylaKrimp |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 8 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.468\" (11.89mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Brazed Seam |
| Thickness | 0.045\" (1.14mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Electro-Tin |
| Length - overall | 1.390\" (35.31mm) |
| Insulation diameter | 0.350\" (8.89mm) |
